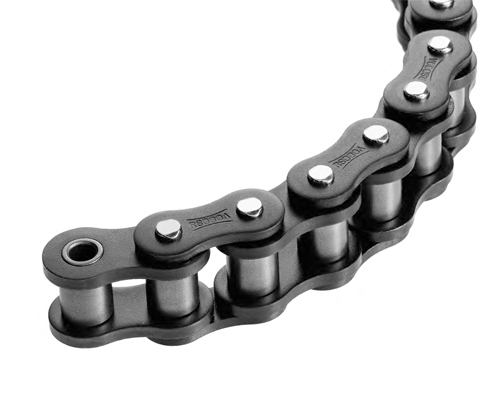

Roller chain 100-1 ANSI, 1 1/4" x 3/4", G8, DIN 8188, pack 3,05 M.
EAN
4061408136506
Type
302RS100-1M
Discover the RS100 A 1 1/4 x 3/4 roller chain, engineered for durability and performance. This simplex chain meets DIN 8188 standards, ideal for demanding applications.
| Quantity | Price | Base price |
|---|---|---|
| From 1 |
€234.95*
|
€77.03* / 1 metres |
| From 3 |
€231.19*
|
€75.80* / 1 metres |
| From 10 |
€229.31*
|
€75.18* / 1 metres |
| From 20 |
€225.55*
|
€73.95* / 1 metres |
Currently sold out, Refill time: 8 days
Our payment methods:
Invoice
Prepayment
Accessories
Reinforced cotter pin conn.link 100-1 ANSI, 1 1/4" x 3/4", G8, DIN 8188
From
€9.11*
Type No.:
312RS100-1
Product properties
| Product family: | Steel |
| Abbreviation: | RS100 A 1 1/4 x 3/4 |
| DIN standard: | DIN 8188 |
| Type: | Simplex |
| Pitch/Pitch (mm): | 31,75 |
| Roll Ø (mm): | 19,05 |
| Inner width (mm): | 19,05 |

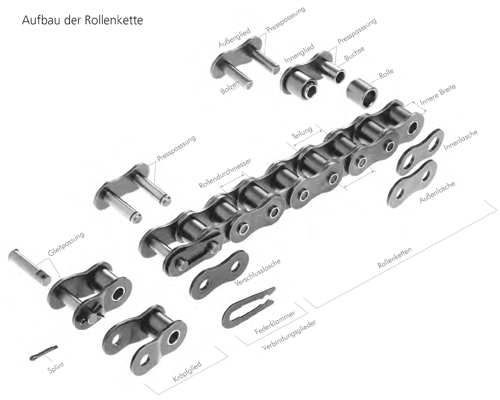

Drawing
Roller chain 100-1 ANSI, 1 1/4" x 3/4", G8, DIN 8188, pitch 31,75 mm, inner width 19,05 mm, roller-Ø 19,05 mm, TSUBAKI, package 3,05 M. incl. conn.link
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
