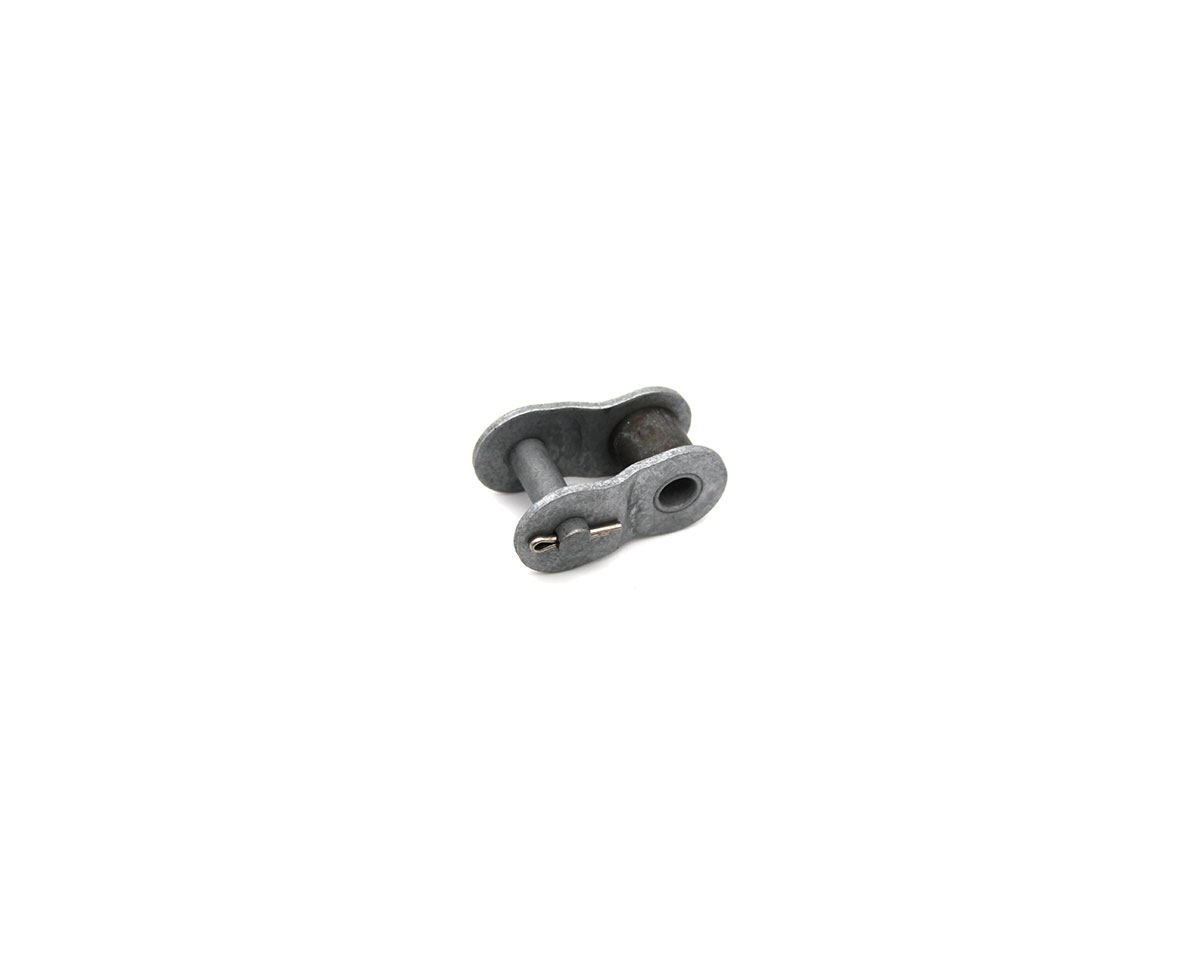

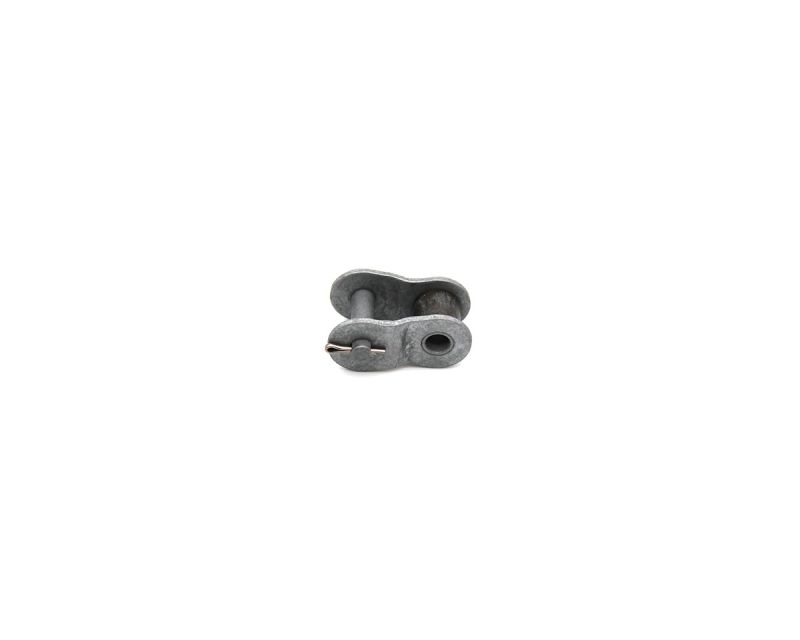

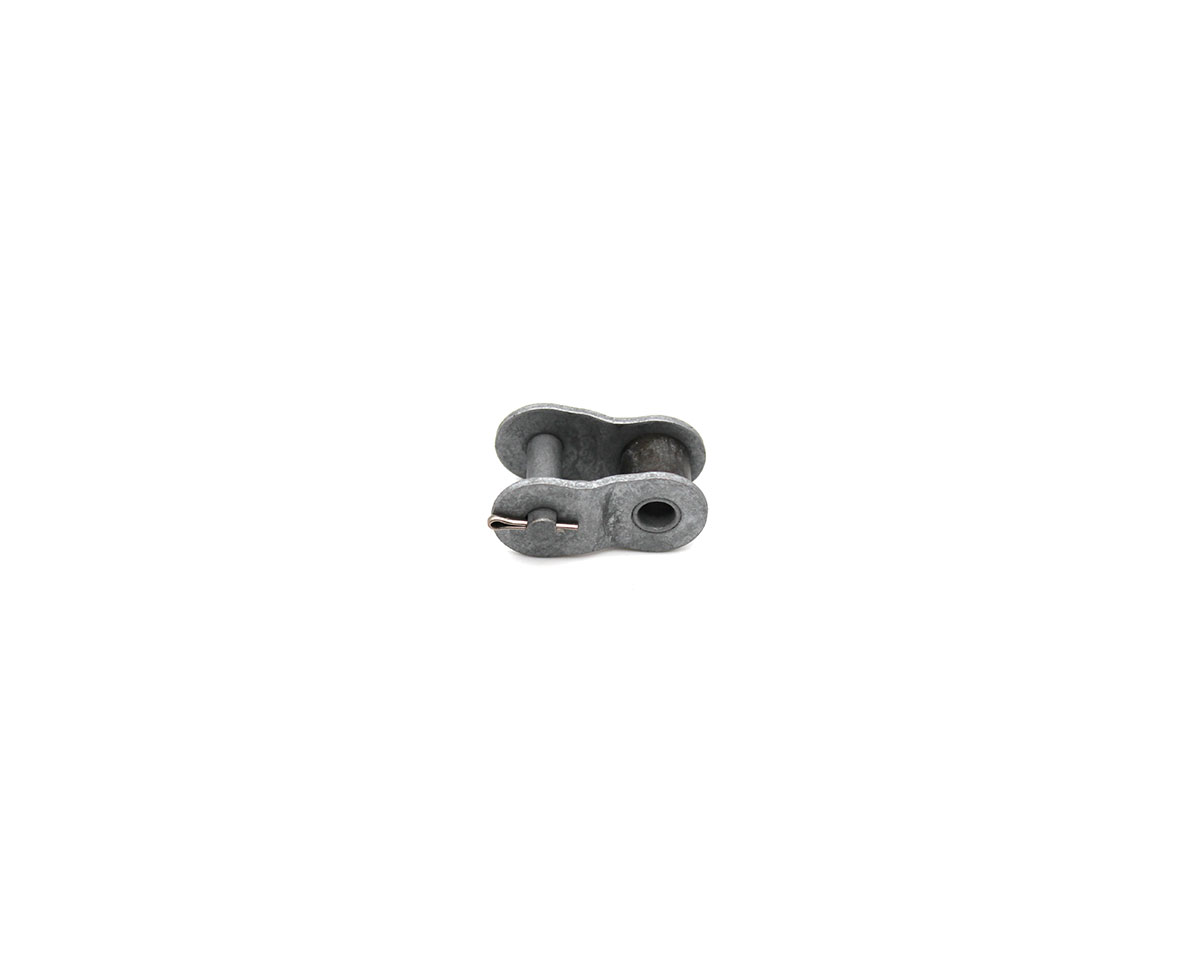

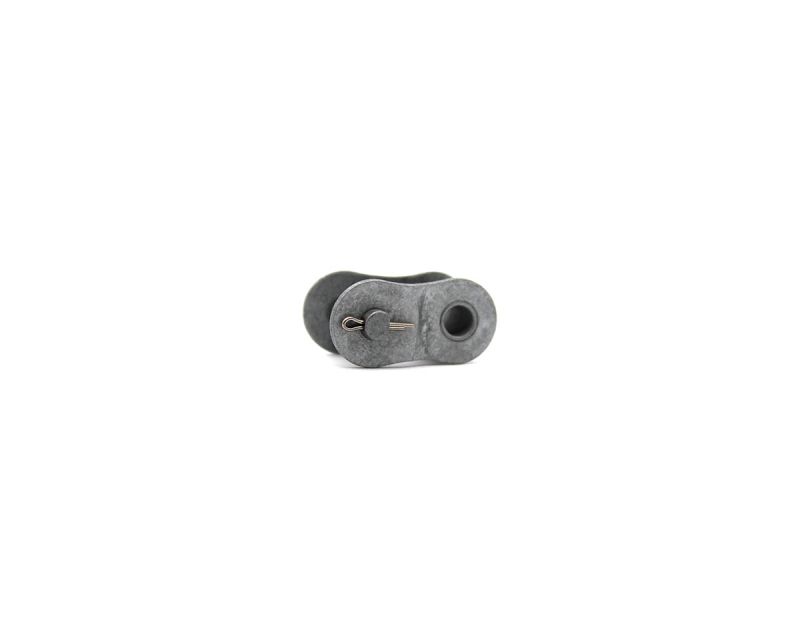

Cotter pin offset link 10 B-1, 5/8" x 3/8", NEPTUNE corrosion resistant, DIN 8187

Order number: 4061408071715

Type: 321RS10B1NEP

Datenblatt

Certificates

3 Pieces Ready to ship today,
Delivery time appr. 1-3 workdays

Quantity	Unit price
Up to 24	€12.13 *
From 25	€11.39 *

Add to parts list

plus tax and shipping costs

Cotter pin offset link 10 B-1, 5/8" x 3/8", NEPTUNE corrosion resistant, DIN 8187, pitch 15,88... more

Close menu

Product information

Cotter pin offset link 10 B-1, 5/8" x 3/8", NEPTUNE corrosion resistant, DIN 8187, pitch 15,88 mm, inner width 9,65 mm, roller-Ø 10,16 mm, *meets RoHS guideline*, TSUBAKI

Type / Property:	Coated NEP
Chain diameter (mm):	10,16
Inner width (mm):	9,65
Corrosion resistant:	Yes
DIN standard:	DIN 8187
Short designation:	RS 10 B 5/8 x 3/8
Version:	Simplex
Teilung / Pitch (mm):	15,88
