movet-korrosionsbestaendige-ketten

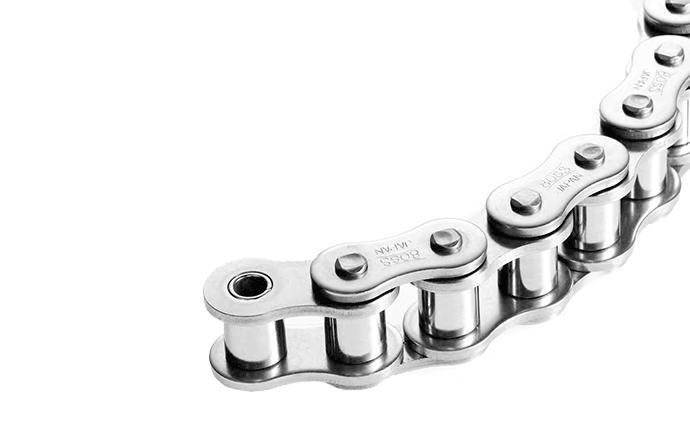

Roller chain 80-1 AS ANSI, 1" x 5/8", corrosion resistant chain, reinforced, AISI304, DIN 8188, pack 3,05 M.

4061408136766
302RS80-1MAS
  • 1,5-fach erhöhte Belastung gegenüber SS-Kette
  • Gehärtete Bolzen und Rollen

0 Pieces Delivery time 8 Workdays

Roller chain 80-1 AS ANSI, 1" x 5/8", corrosion resistant chain, reinforced version, AISI304, DIN... more

Product information

Roller chain 80-1 AS ANSI, 1" x 5/8", corrosion resistant chain, reinforced version, AISI304, DIN 8188, pitch 25,4 mm, inner width 15,88 mm, roller-Ø 15,88 mm, TSUBAKI, with hardened pins, package 3,05 M. incl. conn.link
Chain diameter (mm): 15,88
Corrosion resistant: Yes
DIN standard: DIN 8188
Special features: Hygiene application
Inner width (mm): 15,88
Type / Property: Stainless steel AS
Version: Simplex
Short designation: RS 80 A 1 x 5/8
Teilung / Pitch (mm): 25,40
