movet-korrosionsbestaendige-ketten

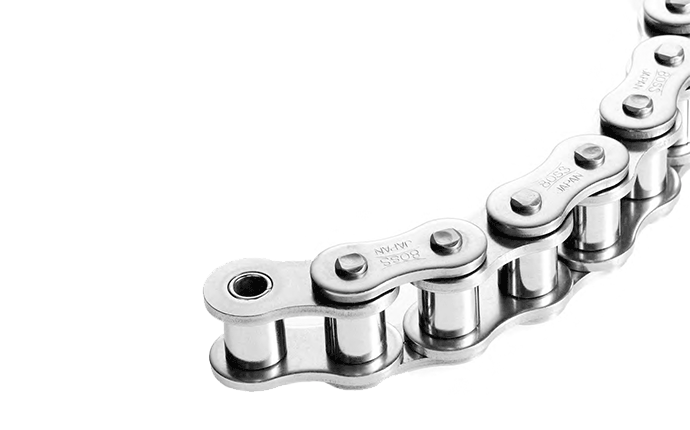

Roller chain 60-1 AS ANSI, 3/4" x 1/2", corrosion resistant chain, reinforced, AISI304, DIN 8188, pack 3,05 M.

4061408136759
302RS60-1MAS
  • 1,5-fach erhöhte Belastung gegenüber SS-Kette
  • Gehärtete Bolzen und Rollen

0 Pieces Delivery time 8 Workdays

Roller chain 60-1 ANSI, 3/4" x 1/2", corrosion resistant chain, reinforced version, AISI304, DIN... more

Product information

Roller chain 60-1 ANSI, 3/4" x 1/2", corrosion resistant chain, reinforced version, AISI304, DIN 8188, pitch 19,05 mm, inner width 12,70 mm, roller-Ø 11,91 mm, TSUBAKI, with hardened pins, package 3,05 M. incl. conn.link
Chain diameter (mm): 11,91
Corrosion resistant: Yes
DIN standard: DIN 8188
Special features: Hygiene application
Inner width (mm): 12,70
Type / Property: Stainless steel AS
Version: Simplex
Short designation: RS 60 A 3/4 x 1/2
Teilung / Pitch (mm): 19,05
