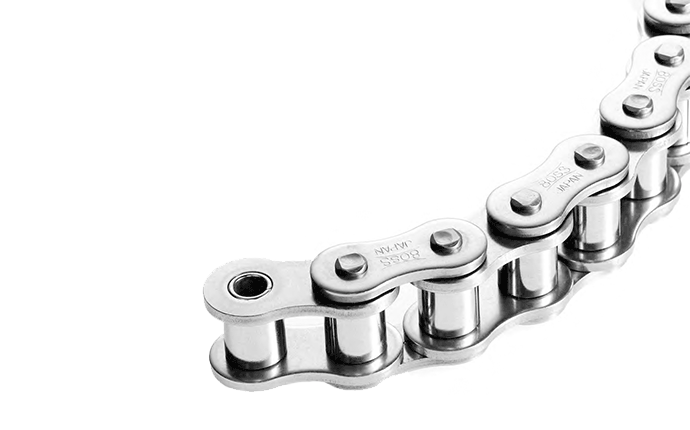

Roller chain 100-1 ANSI, 1 1/4" x 3/4", corrosion resistant chain, AISI304, DIN 8188, pack 3,05 M.

4061408136704
302RS100-1MSS

0 Pieces Delivery time 8 Workdays

Roller chain 100-1, ANSI, 1 1/4" x 3/4", corrosion resistant chain, AISI304, DIN 8188, pitch... more

Product information

Roller chain 100-1, ANSI, 1 1/4" x 3/4", corrosion resistant chain, AISI304, DIN 8188, pitch 31,75 mm, inner width 19,05 mm, roller-Ø 19,05 mm, TSUBAKI, package 3,05 M. incl. conn.link
Type / Property: Stainless steel SS
Chain diameter (mm): 19,05
Corrosion resistant: Yes
DIN standard: DIN 8188
Special features: Hygiene application
Inner width (mm): 19,05
Version: Simplex
Short designation: RS100 A 1 1/4 x 3/4
Teilung / Pitch (mm): 31,75
