Levelling foot ECO16 PA, Ø 103 mm, M16 x 100 mm Steel, Drills, NBR
Elevate your engineering projects with the ECO16 Levelling Foot. Featuring a durable polyamide base, galvanized steel spindle, and NBR anti-slip design, it supports static loads up to 30,000 N. Ideal for precise leveling with a 16° adjustment angle.
| Quantity | Price |
|---|---|
| From 1 |
€6.34*
|
| From 5 |
€6.07*
|
| From 15 |
€5.22*
|
| From 50 |
€4.95*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 100 |
| Balancing angle: | 16° |

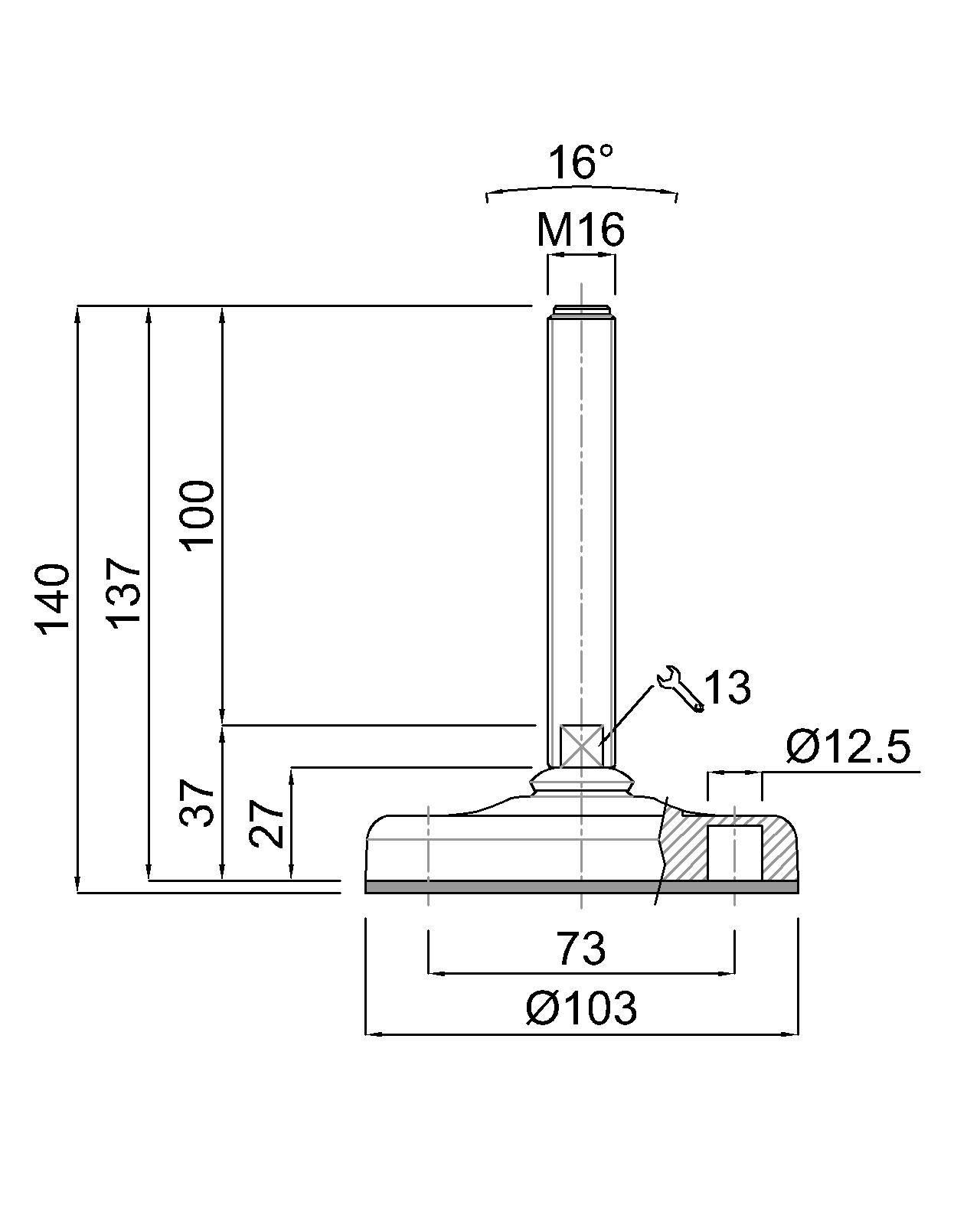

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
