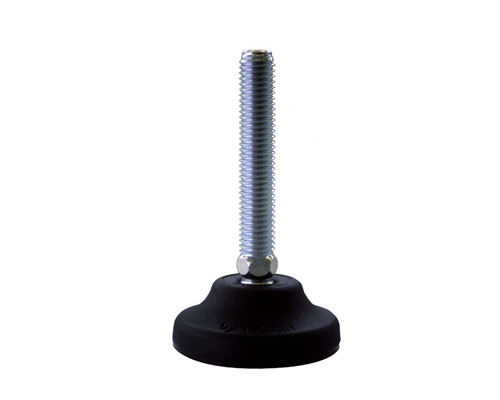

Levelling foot PA, Ø 65 mm, M12 x 125 mm Steel
The PA levelling foot, featuring a 65 mm diameter and M12 x 125 mm galvanized steel spindle, offers robust support with an articulated screw for a 30° adjustment, handling static loads up to 11,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€4.64*
|
| From 5 |
€4.45*
|
| From 15 |
€3.83*
|
| From 50 |
€3.63*
|
8 on stock, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | No |
| Ø range base plate (mm): | 51-70 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 125 |
| Balancing angle: | 30° |
| Hygiene: | No |

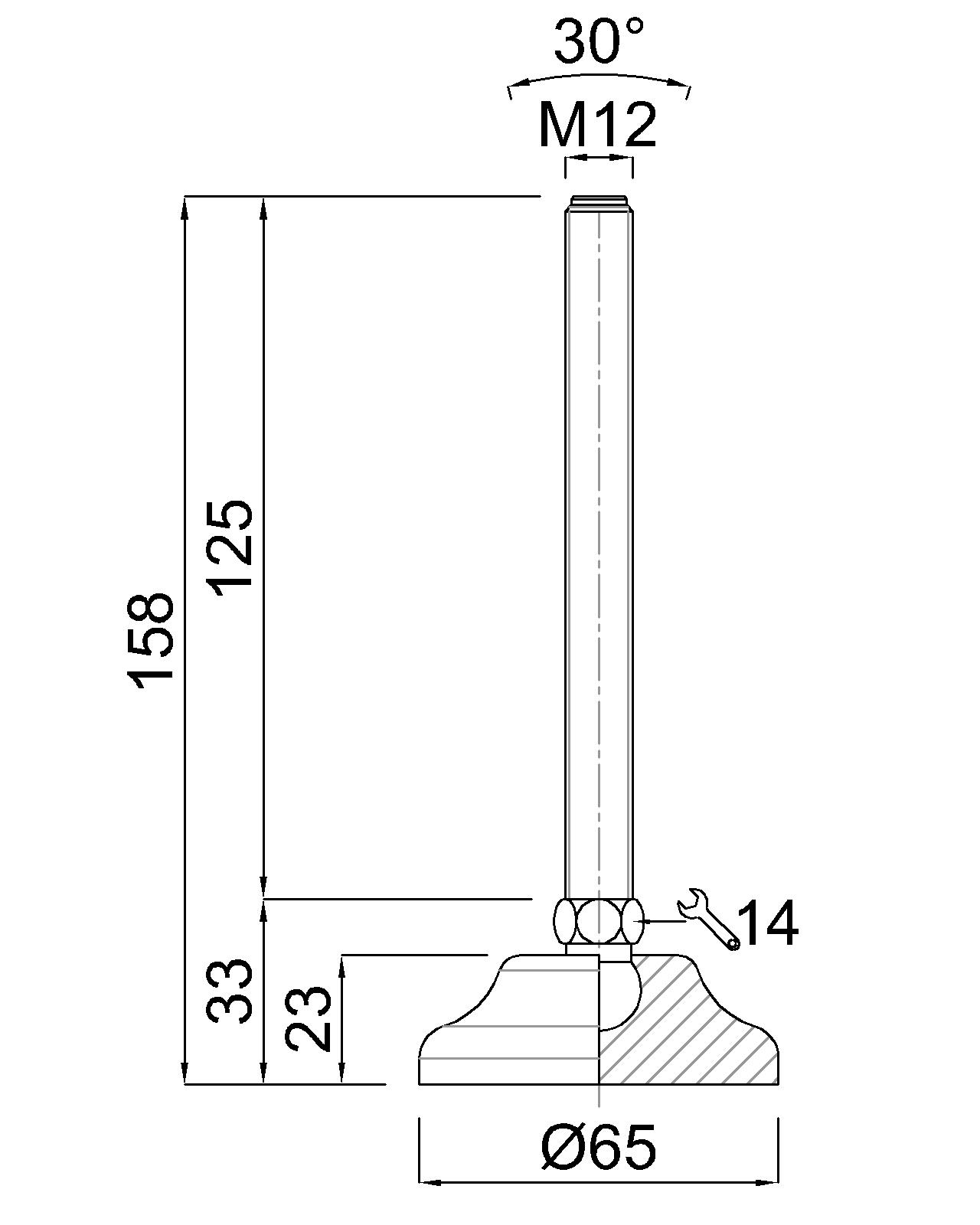

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
