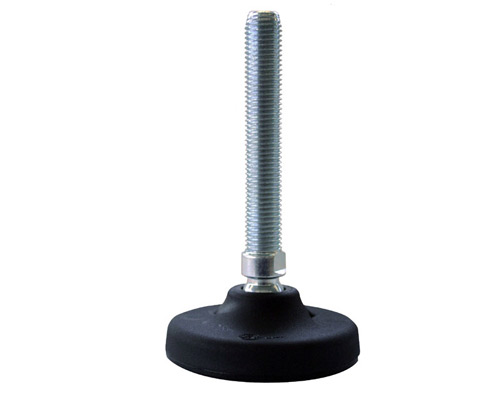

Levelling foot PA, Ø 103 mm, M16 x 200 mm Steel, Drills

EAN 4061408038220

Type 45810334

Optimize your machinery stability with our durable Levelling Foot, featuring a 103 mm polyamide base and galvanized steel spindle. Designed for a static load of 25,000 N, it ensures reliable support even at a 30° angle.

High static load capacity of 25,000 N ensures reliable performance even in demanding applications.
Constructed from durable polyamide and galvanized steel for enhanced resistance to corrosion and wear.
Articulated screw design allows for a flexible adjustment angle of 30°, accommodating uneven surfaces.
Total height of 251 mm with a footplate diameter of 103 mm, optimizing stability and support.
Features two bore holes with a diameter of 12.5 mm for secure ground attachment, suitable for various installation needs.

Quantity	Price
From 1	€7.09*
From 5	€6.79*
From 15	€5.84*
From 50	€5.54*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€7.09* / piece

Our payment methods:

Accessories

Round plug polyamide Ø 60, M20, nickel-plated brass insert

Type No.: 45817028

From €3.56*

Product properties

Footplate material:	Plastic
Anti-slip:	No
Ø range base plate (mm):	91-110
Ground fastening:	2 mounting holes
Vibration damping:	no
Material spindle:	Steel
Ø spindle (mm):	16
Spindle length (mm):	200
Balancing angle:	30°
Hygiene:	No

Product description

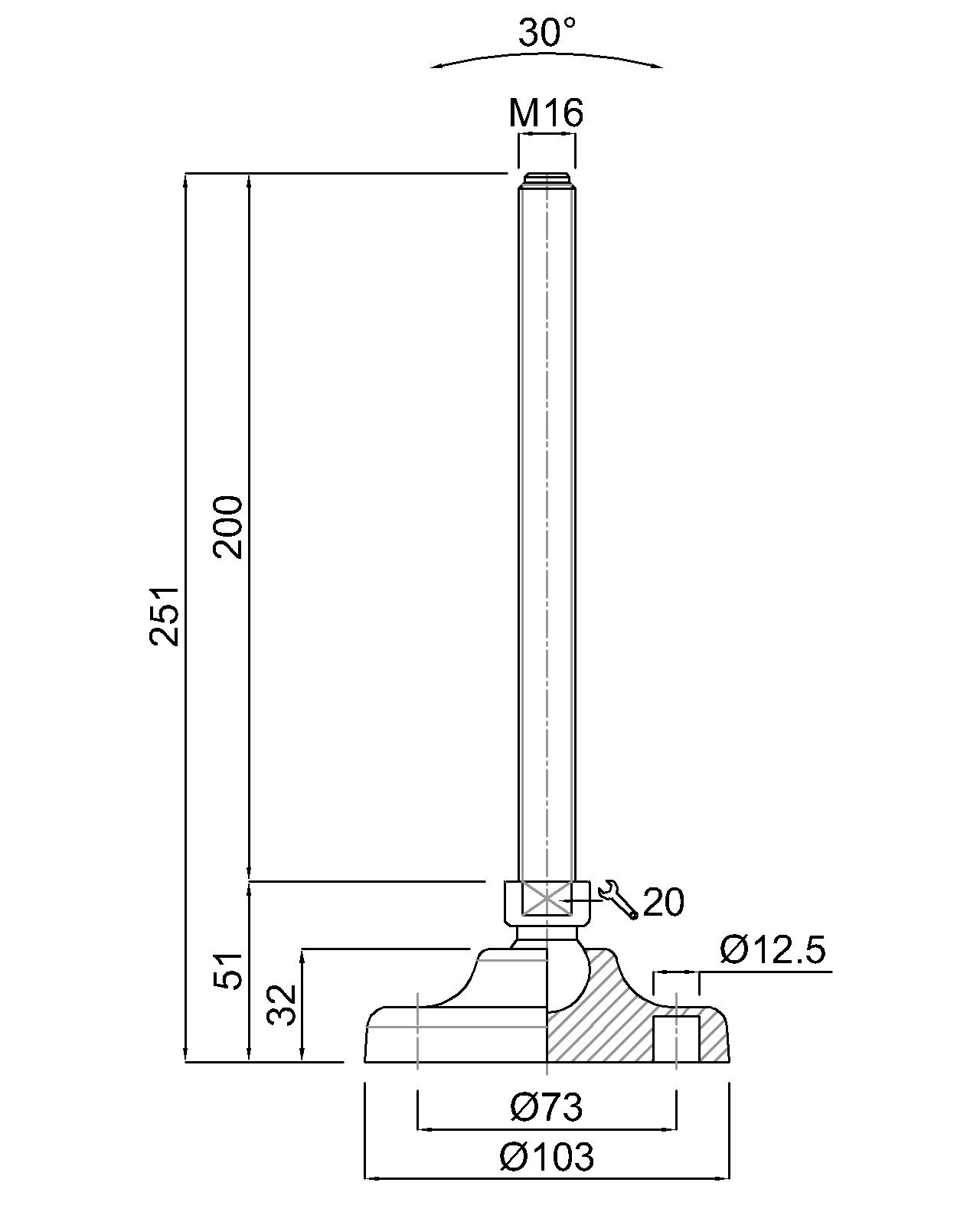

Levelling foot Polyamide, Ø 103 mm, M16 x 200 mm, Galvanized steel, Total height 251 mm, Articulated screw 30°, Bore holes Ø 12,5 mm, Static load 25.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
