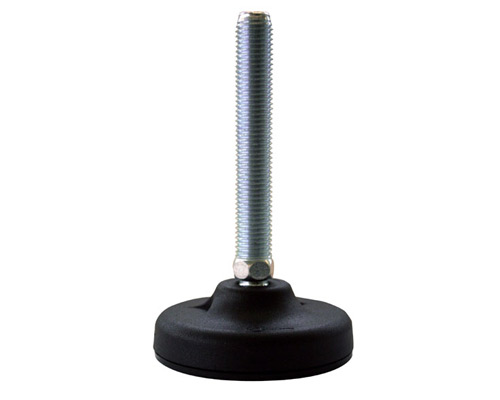

Levelling foot PA, Ø 83 mm, M14 x 75 mm Steel, Drills, NBR
Optimize your equipment's stability with our high-performance Levelling Foot. Featuring a durable polyamide base and galvanized steel spindle, it supports static loads up to 15,000 N with a 30° adjustment angle.
| Quantity | Price |
|---|---|
| From 1 |
€5.28*
|
| From 5 |
€5.06*
|
| From 15 |
€4.36*
|
| From 50 |
€4.13*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Steel |
| Ø spindle (mm): | 14 |
| Spindle length (mm): | 75 |
| Balancing angle: | 30° |

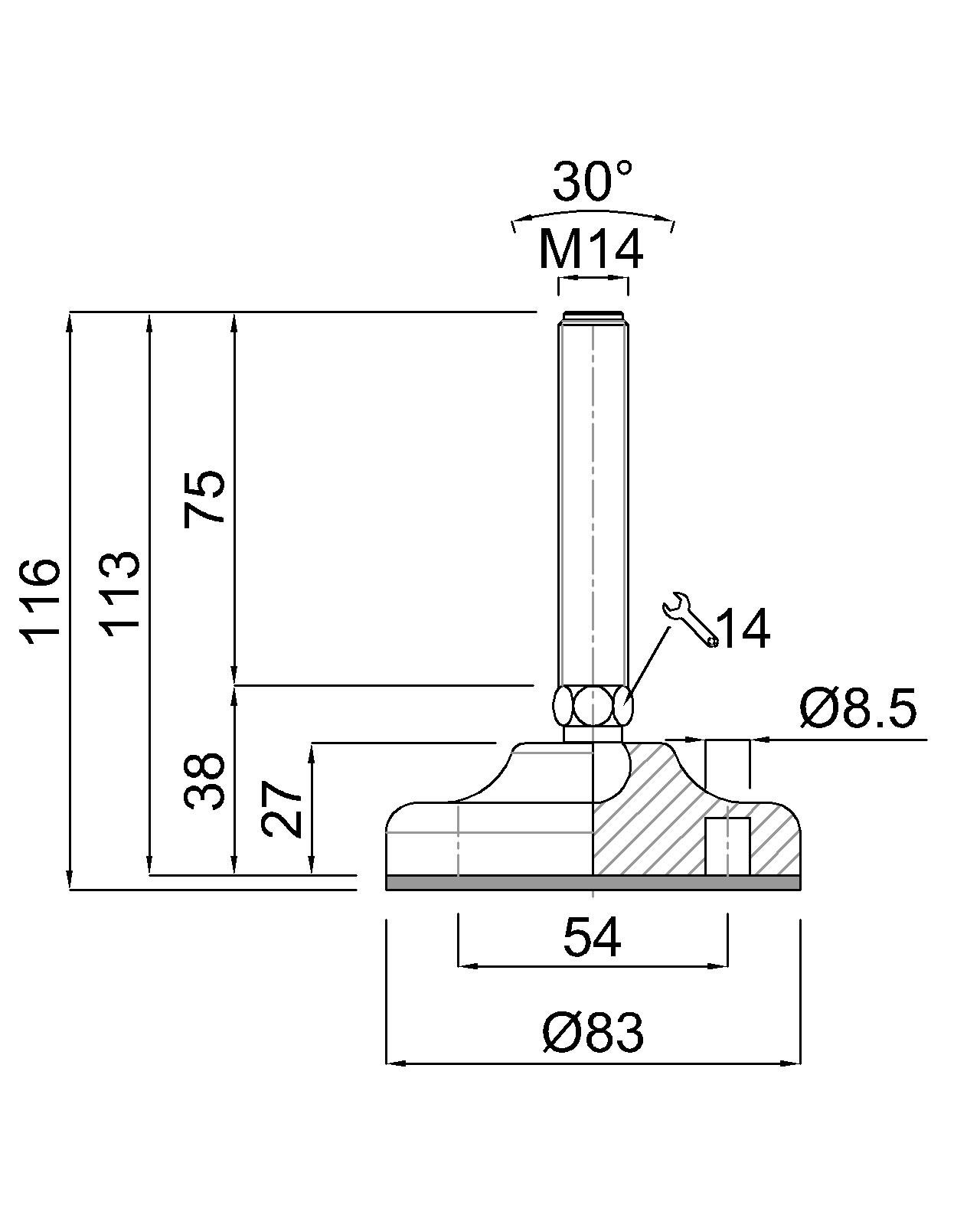

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
