Levelling foot PA, Ø 103 mm, M20 x 200 mm Steel, Drills
Optimize stability with our Polyamide Levelling Foot. Featuring a durable galvanized steel spindle and a 30° articulated screw, it supports loads up to 25,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€6.60*
|
| From 5 |
€6.32*
|
| From 15 |
€5.44*
|
| From 50 |
€5.16*
|
15 on stock, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 200 |
| Balancing angle: | 30° |
| Hygiene: | No |

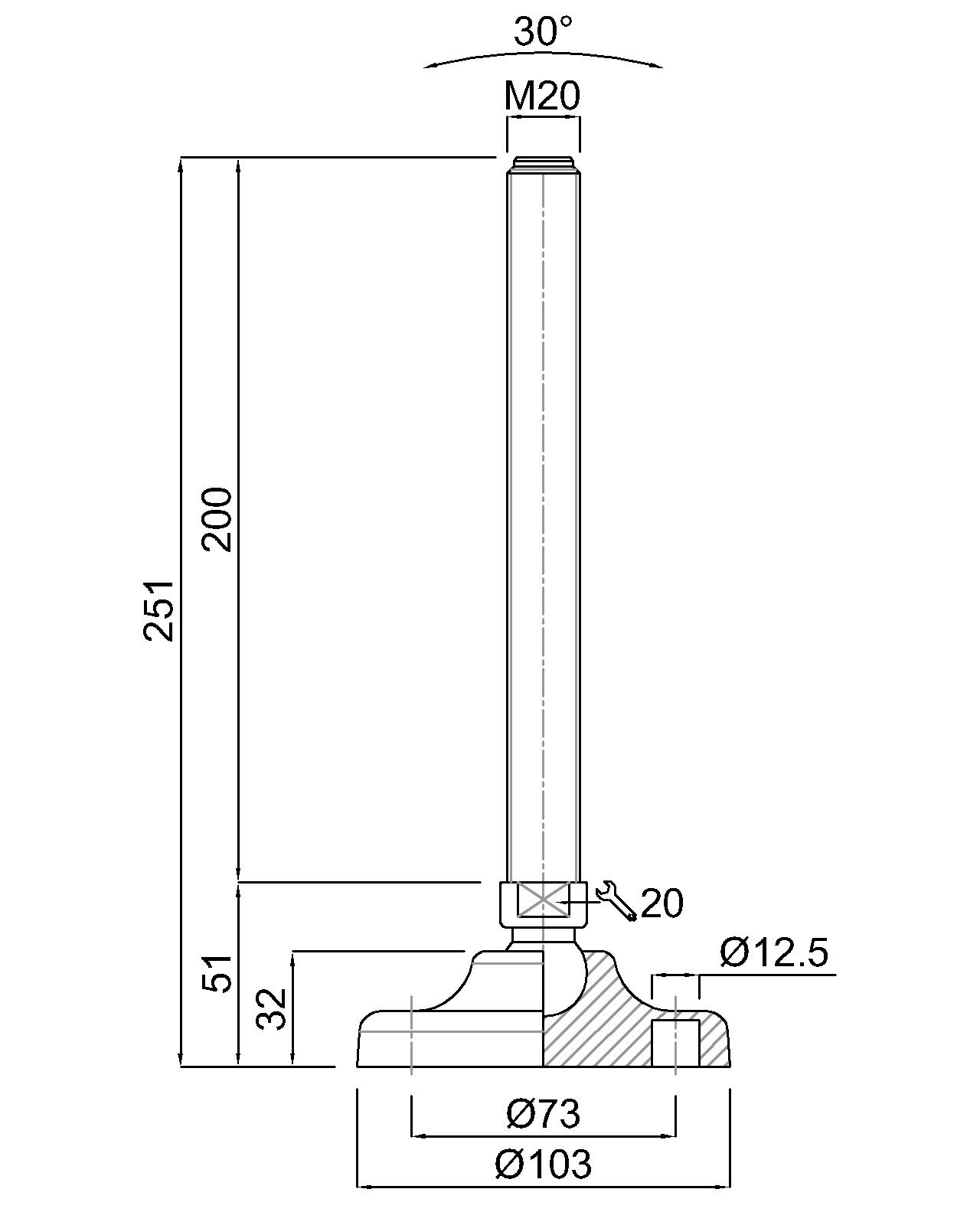

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
