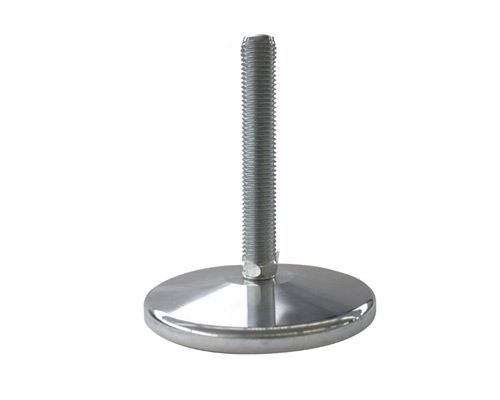

Levelling foot MASSIV Steel, Ø 159 mm, M20 x 150 mm
Discover the MASSIV Steel Levelling Foot, featuring a robust galvanized steel construction, a 186 mm total height, and a static load capacity of 50,000 N, ensuring stability and precision for your engineering projects.
| Quantity | Price |
|---|---|
| From 1 |
€39.63*
|
| From 5 |
€37.95*
|
| From 15 |
€36.75*
|
| From 50 |
€36.27*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 10° |
| Hygiene: | No |

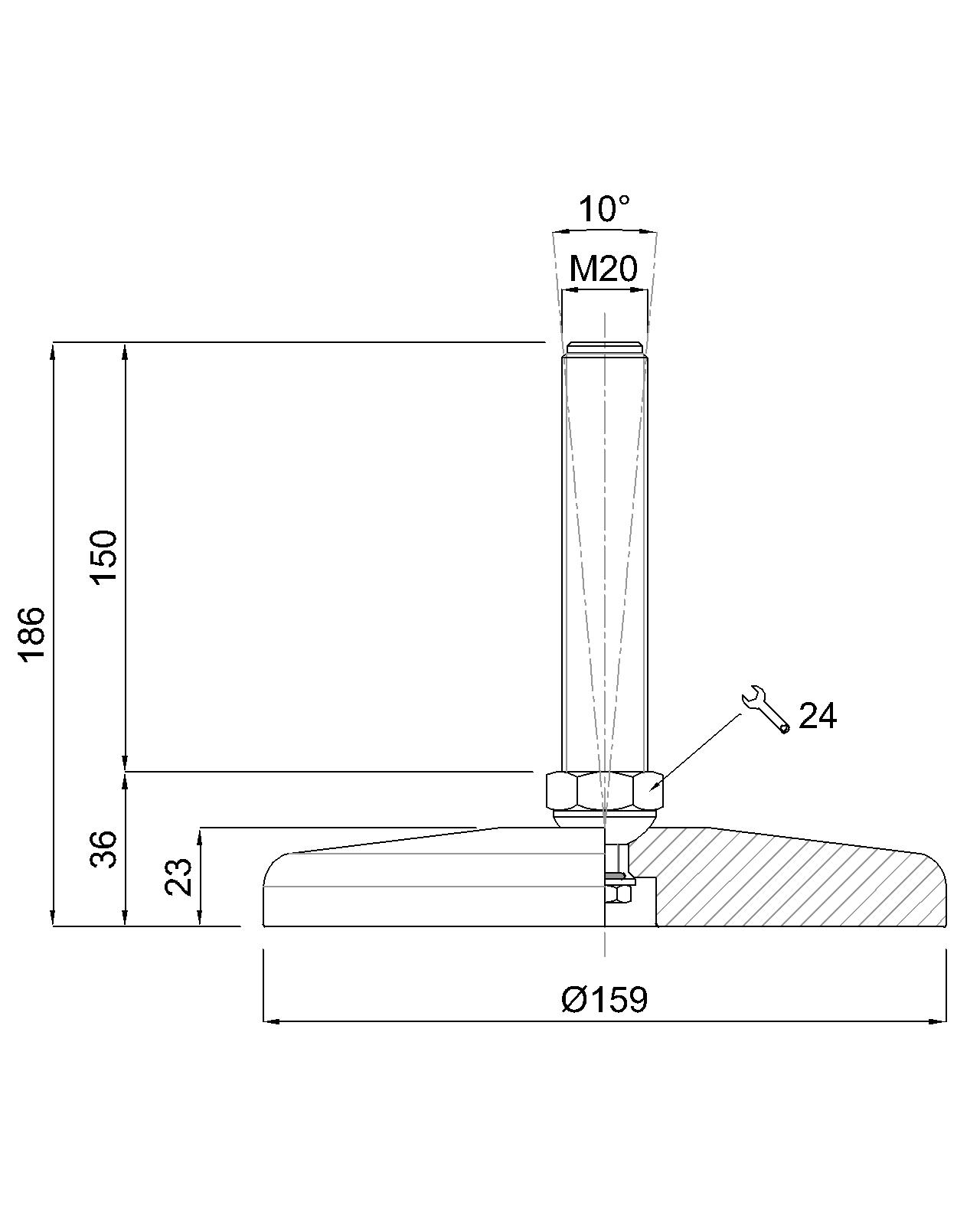

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
