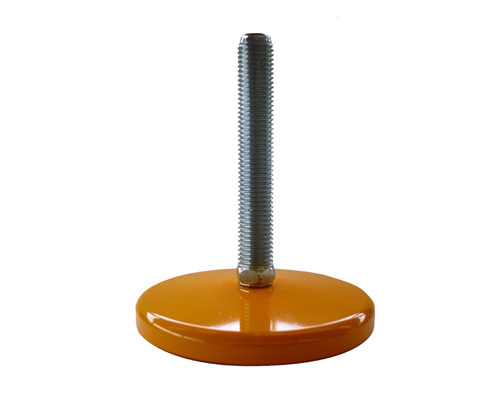

Levelling foot MASSIV Steel, Ø 159 mm, M20 x 100 mm, yellow
Discover the MASSIV Steel Leveling Foot, designed for robust stability with a 159 mm diameter and M20 thread. Capable of supporting static loads up to 50,000 N, it features a galvanized finish and a 10° articulated screw for versatile applications.
| Quantity | Price |
|---|---|
| From 1 |
€41.20*
|
| From 5 |
€39.45*
|
| From 15 |
€38.20*
|
| From 50 |
€37.70*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 100 |
| Balancing angle: | 10° |
| Hygiene: | No |

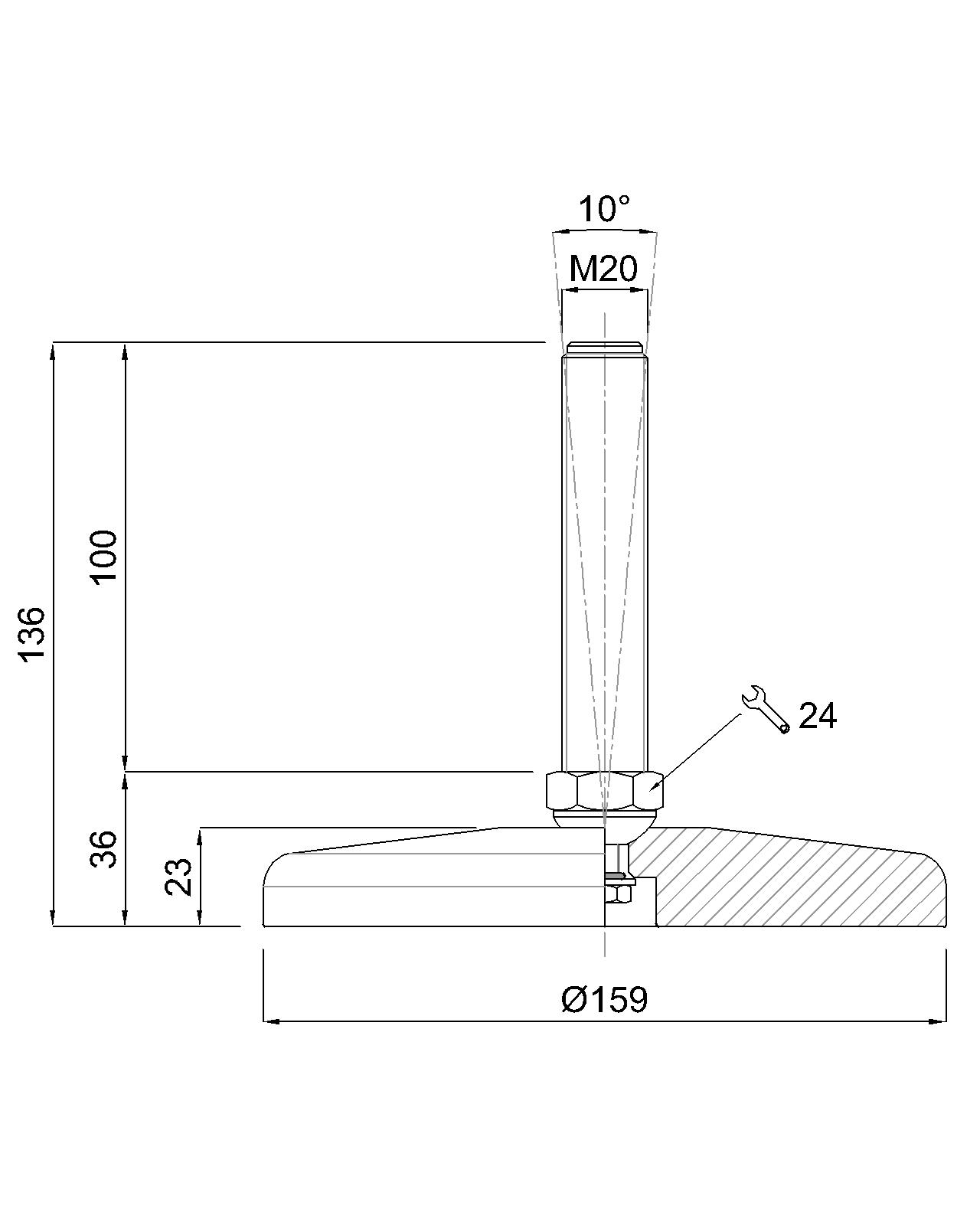

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
