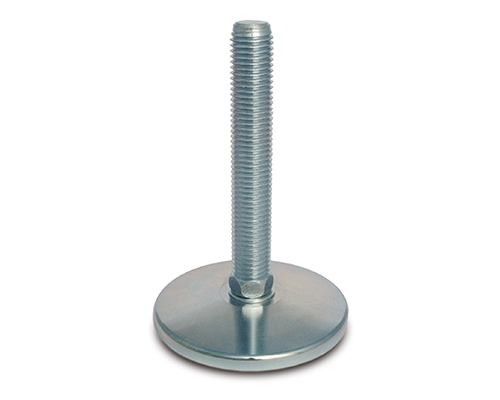

Levelling foot MASSIV Steel, Ø 150 mm, M24 x 100 mm
Discover the MASSIV Steel Levelling Foot with a 150 mm diameter and M24 x 100 mm threaded spindle. Designed for heavy loads up to 50,000 N, it features corrosion-resistant galvanized steel and a flexibility angle of 5°. Perfect for robust applications.
| Quantity | Price |
|---|---|
| From 1 |
€27.97*
|
| From 5 |
€26.78*
|
| From 15 |
€25.93*
|
| From 50 |
€25.59*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 100 |
| Balancing angle: | 5° |
| Hygiene: | No |

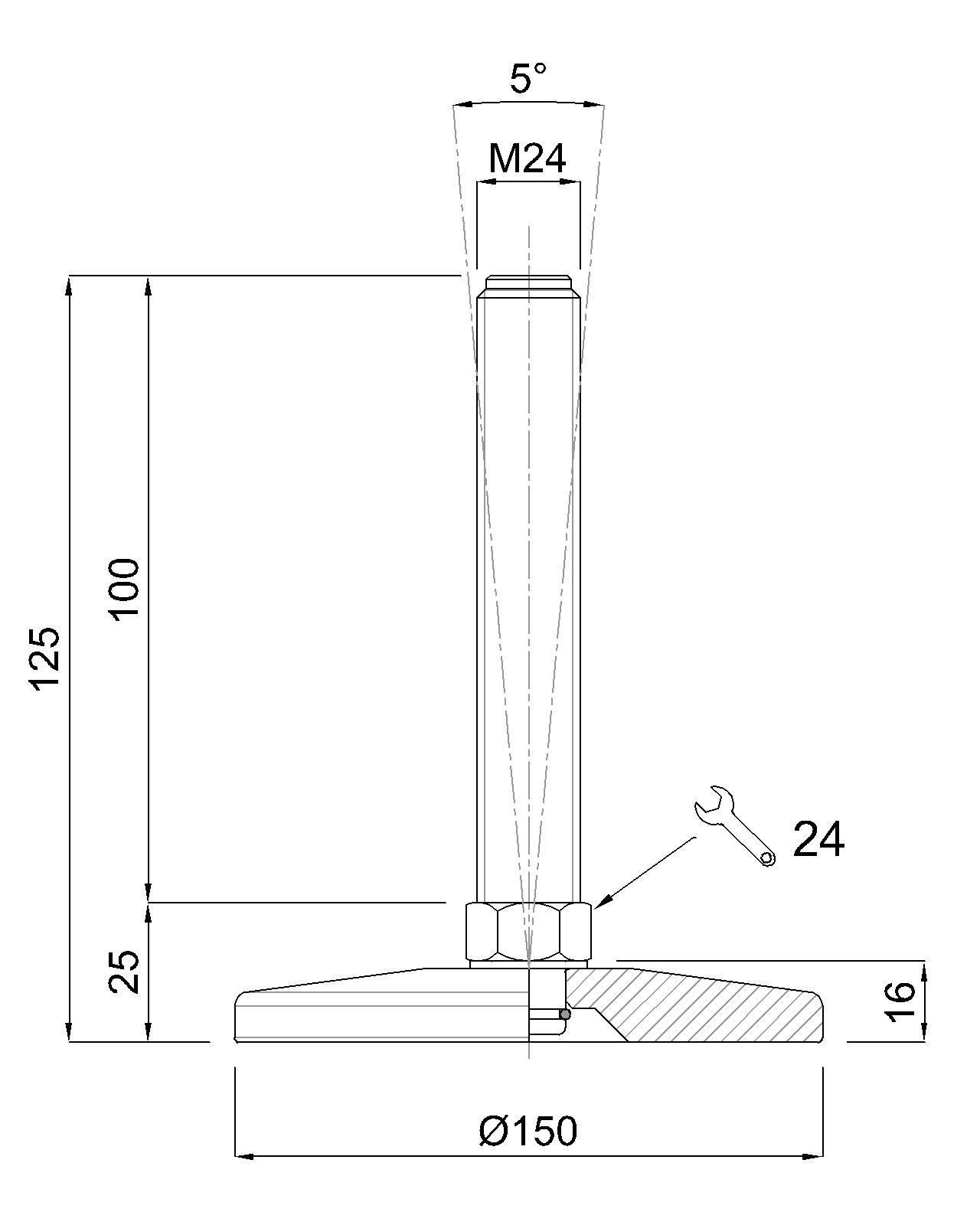

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
