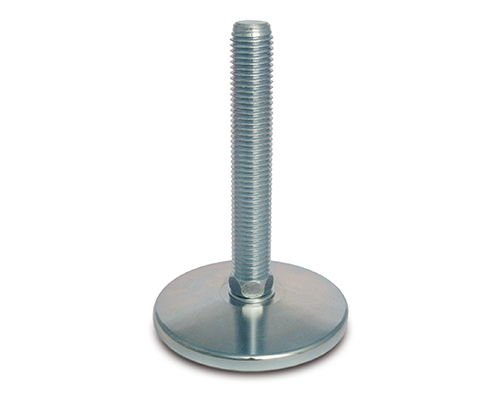

Levelling foot MASSIV Steel, Ø 120 mm, M30 x 125 mm, NBR
Discover the MASSIV Steel Levelling Foot, featuring a robust 120 mm diameter and M30 x 125 mm spindle. Engineered for stability, it supports static loads up to 45,000 N with a 5° articulation and anti-slip NBR for optimal performance.
| Quantity | Price |
|---|---|
| From 1 |
€23.30*
|
| From 5 |
€22.31*
|
| From 15 |
€21.60*
|
| From 50 |
€21.32*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 125 |
| Balancing angle: | 5° |

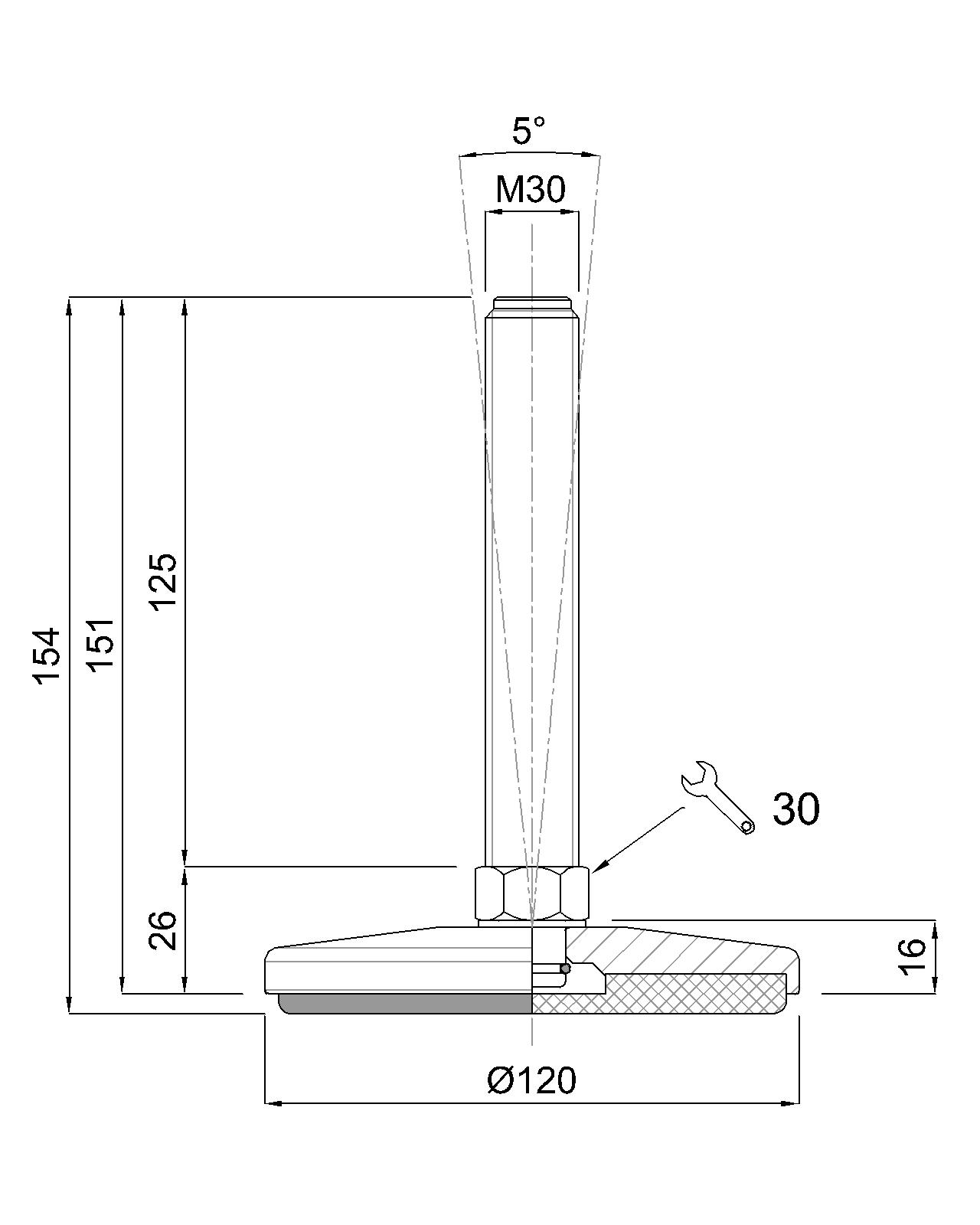

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
