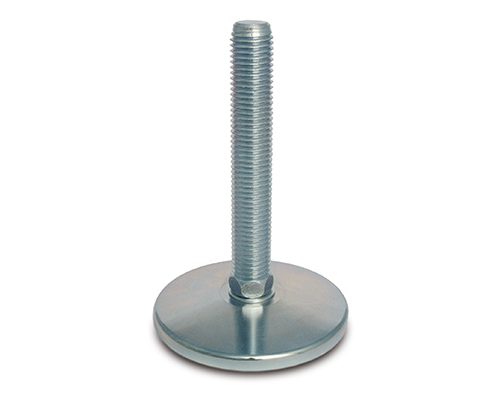

Levelling foot MASSIV Steel, Ø 120 mm, M16 x 100 mm, NBR
Optimize your setup with our MASSIV Steel levelling foot, featuring a robust 120 mm diameter and a load capacity of 35,000 N. Ideal for precise adjustments and durable performance.
| Quantity | Price |
|---|---|
| From 1 |
€20.01*
|
| From 5 |
€19.17*
|
| From 15 |
€18.56*
|
| From 50 |
€18.32*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 100 |
| Balancing angle: | 5° |

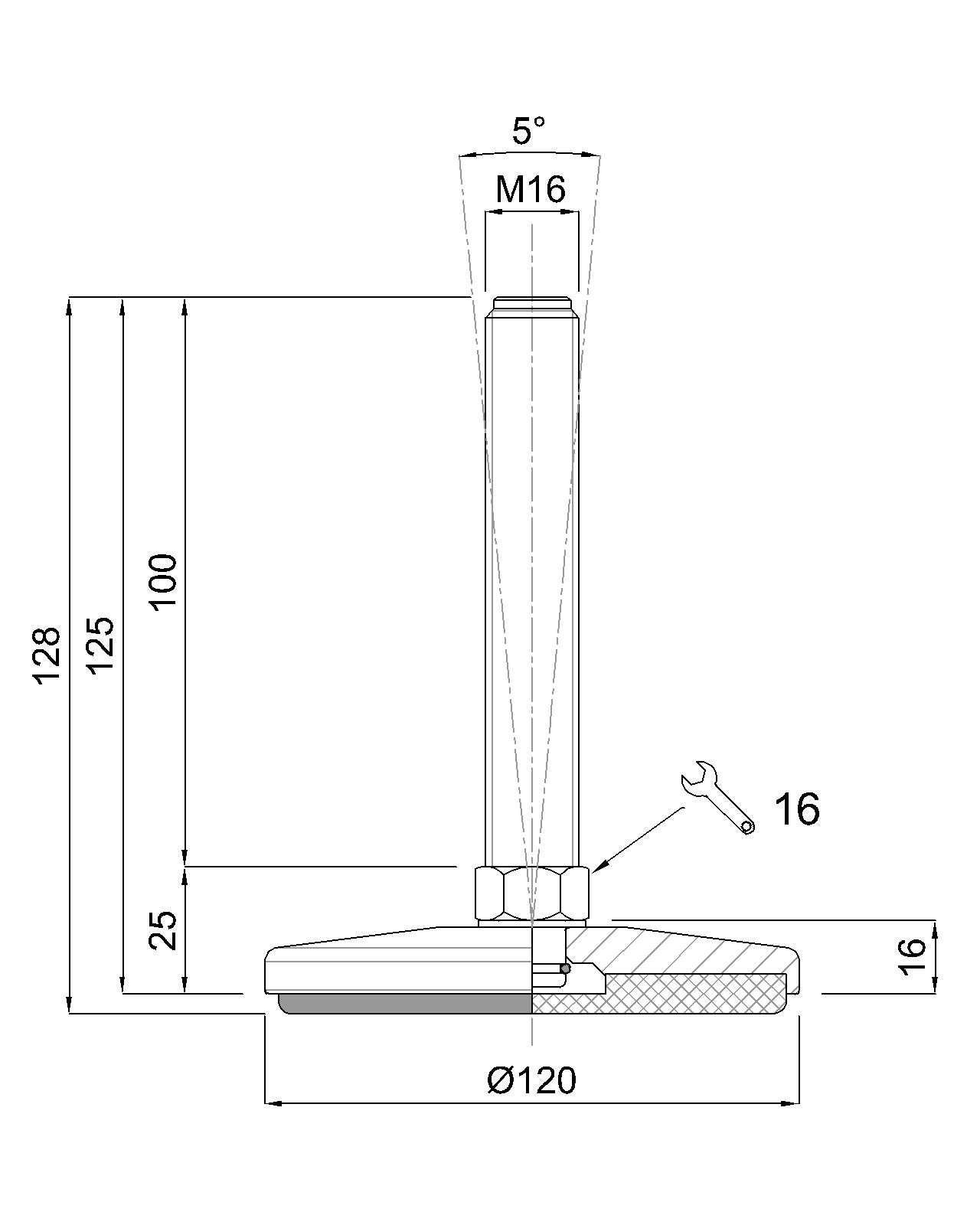

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
