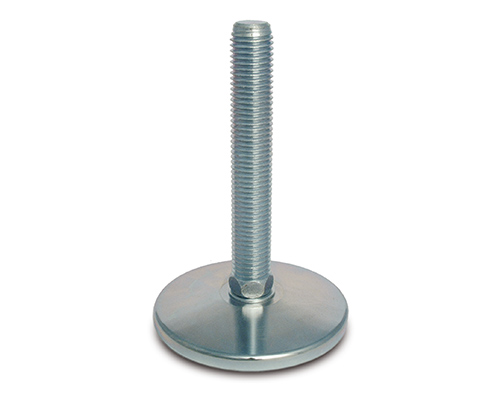

Levelling foot MASSIV Steel, Ø 100 mm, M30 x 175 mm
The MASSIV Steel levelling foot features a robust 100 mm diameter footplate and a 175 mm long M30 spindle, designed for static loads up to 35,000 N. Its galvanized finish ensures durability, while the 5° articulated screw allows for precise adjustments, making it ideal for a variety of engineering applications.
| Quantity | Price |
|---|---|
| From 1 |
€20.01*
|
| From 5 |
€19.17*
|
| From 15 |
€18.56*
|
| From 50 |
€18.32*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 175 |
| Balancing angle: | 5° |
| Hygiene: | No |

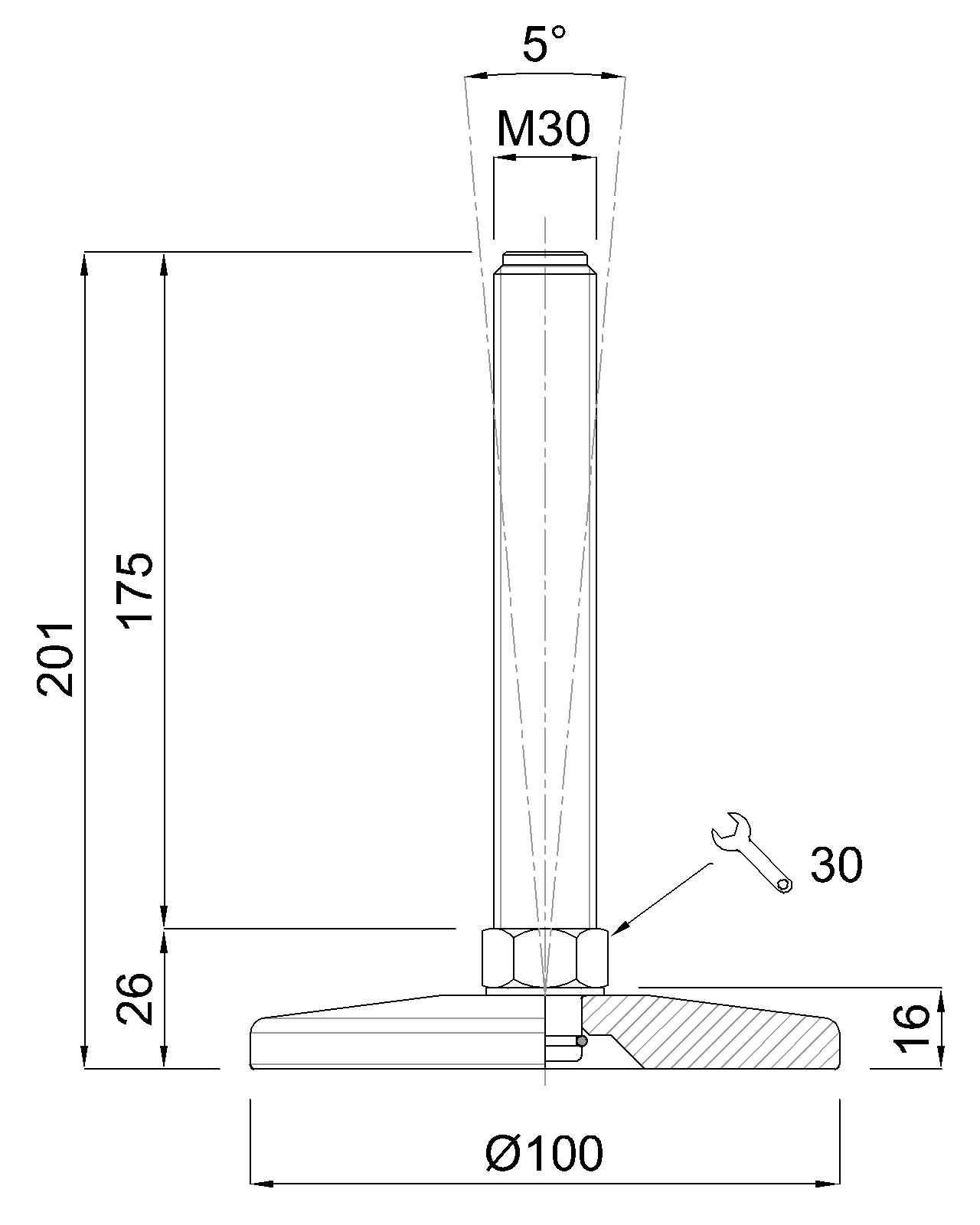

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
