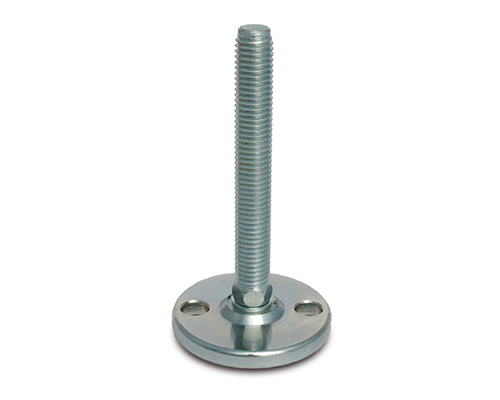

Levelling foot MASSIV Steel, Ø 65 mm, M14 x 100 mm, Drills
Discover the MASSIV Steel Levelling Foot: engineered for stability with a robust 65 mm diameter, a 100 mm M14 steel spindle, and a static load capacity of 18,000 N. Perfect for precise leveling applications.
| Quantity | Price |
|---|---|
| From 1 |
€9.49*
|
| From 5 |
€9.09*
|
| From 15 |
€8.80*
|
| From 50 |
€8.68*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 51-70 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 14 |
| Spindle length (mm): | 100 |
| Balancing angle: | 5° |
| Hygiene: | No |

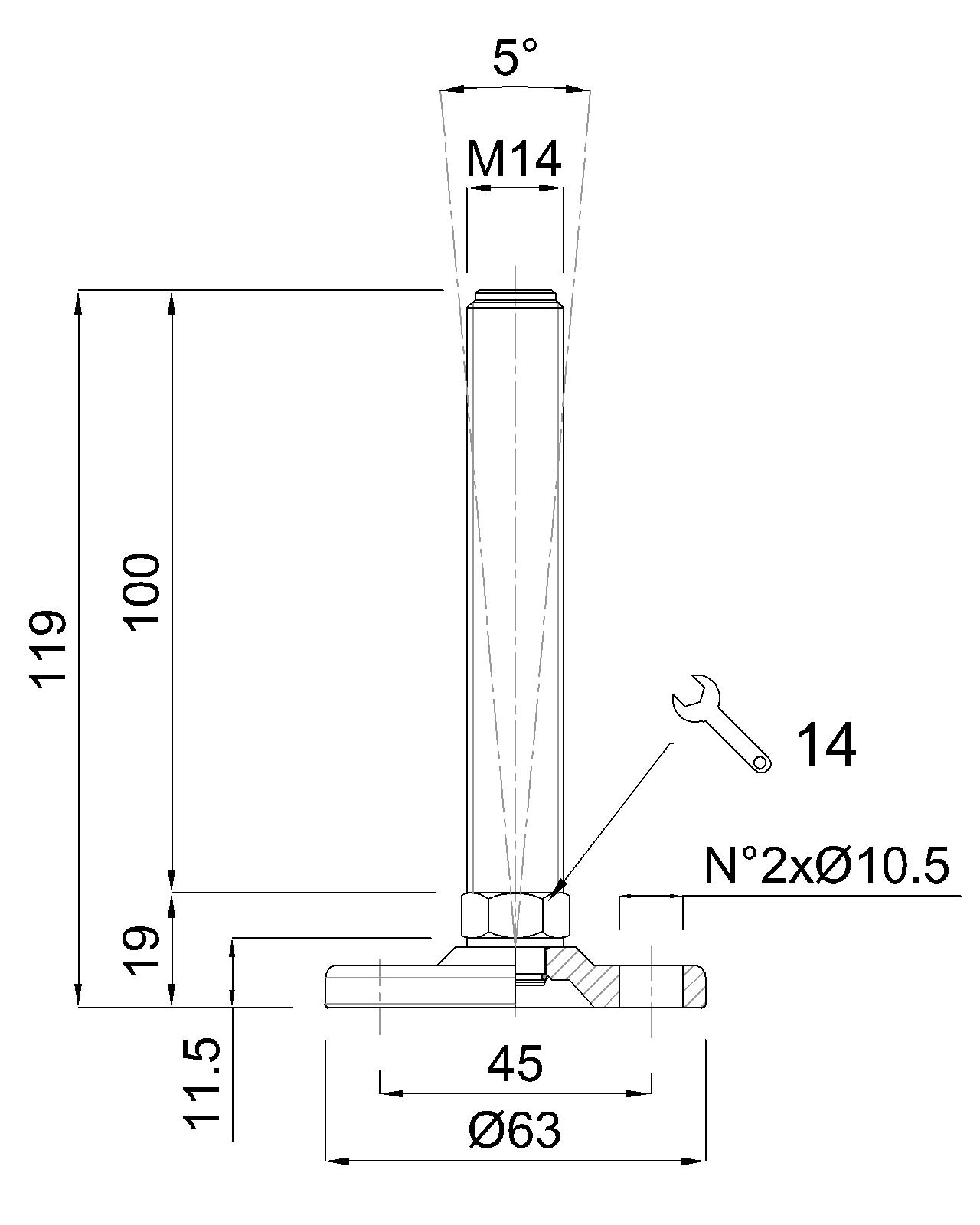

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
