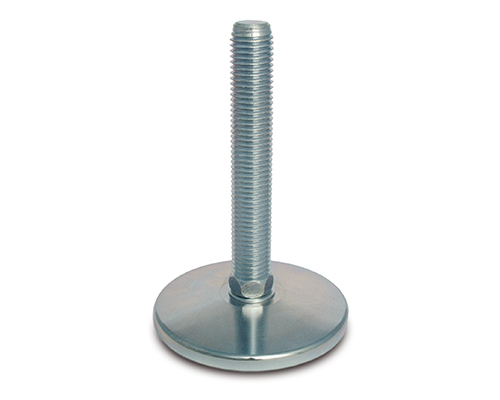

Levelling foot MASSIV Steel, Ø 120 mm, M24 x 100 mm, NBR
The MASSIV Steel Levelling Foot offers exceptional stability with a 120 mm diameter and static load capacity of 45,000 N. Its galvanized steel construction and NBR anti-slip feature ensure durability and superior grip. Ideal for precision engineering applications.
| Quantity | Price |
|---|---|
| From 1 |
€20.97*
|
| From 5 |
€20.08*
|
| From 15 |
€19.45*
|
| From 50 |
€19.19*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 100 |
| Balancing angle: | 5° |

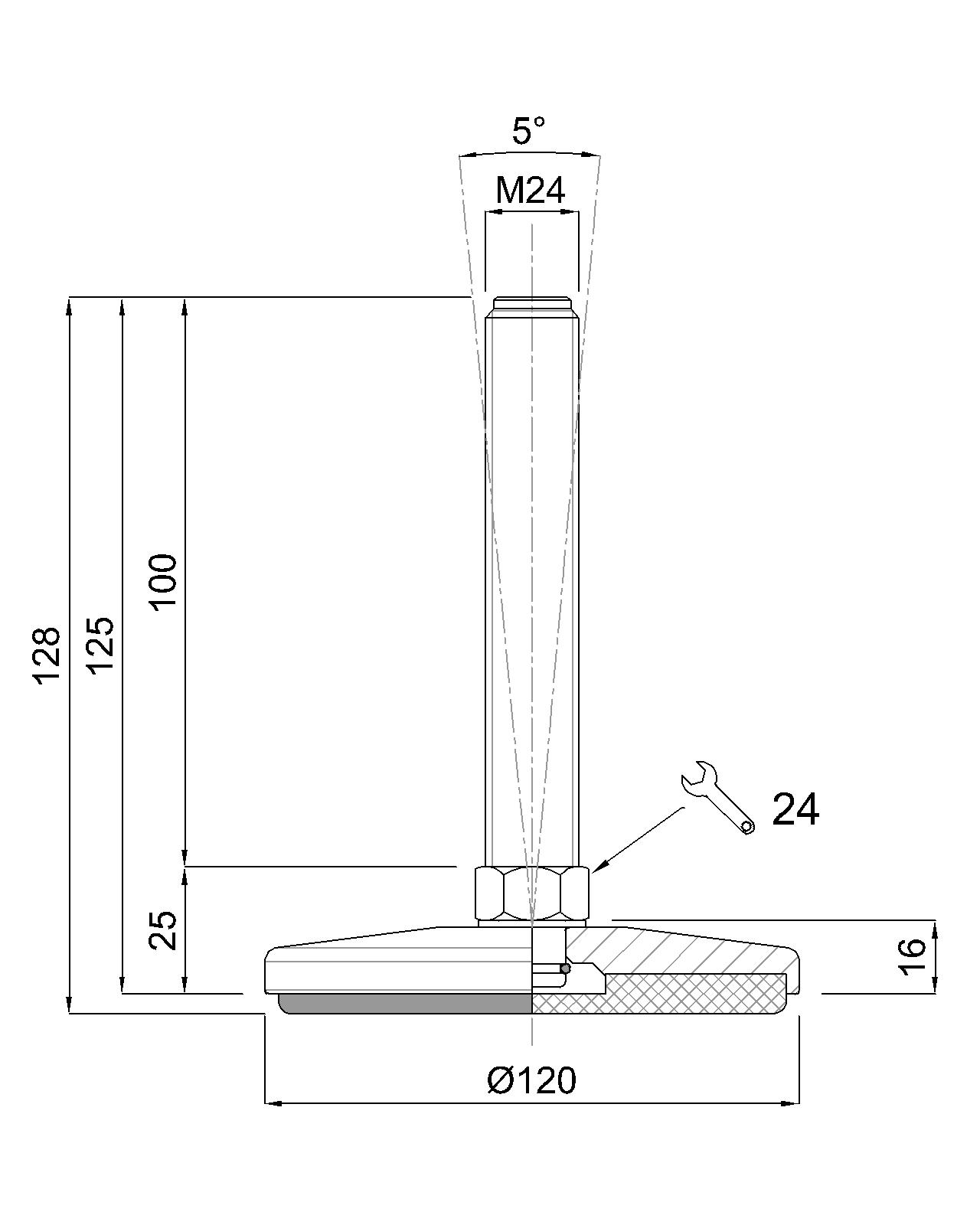

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
