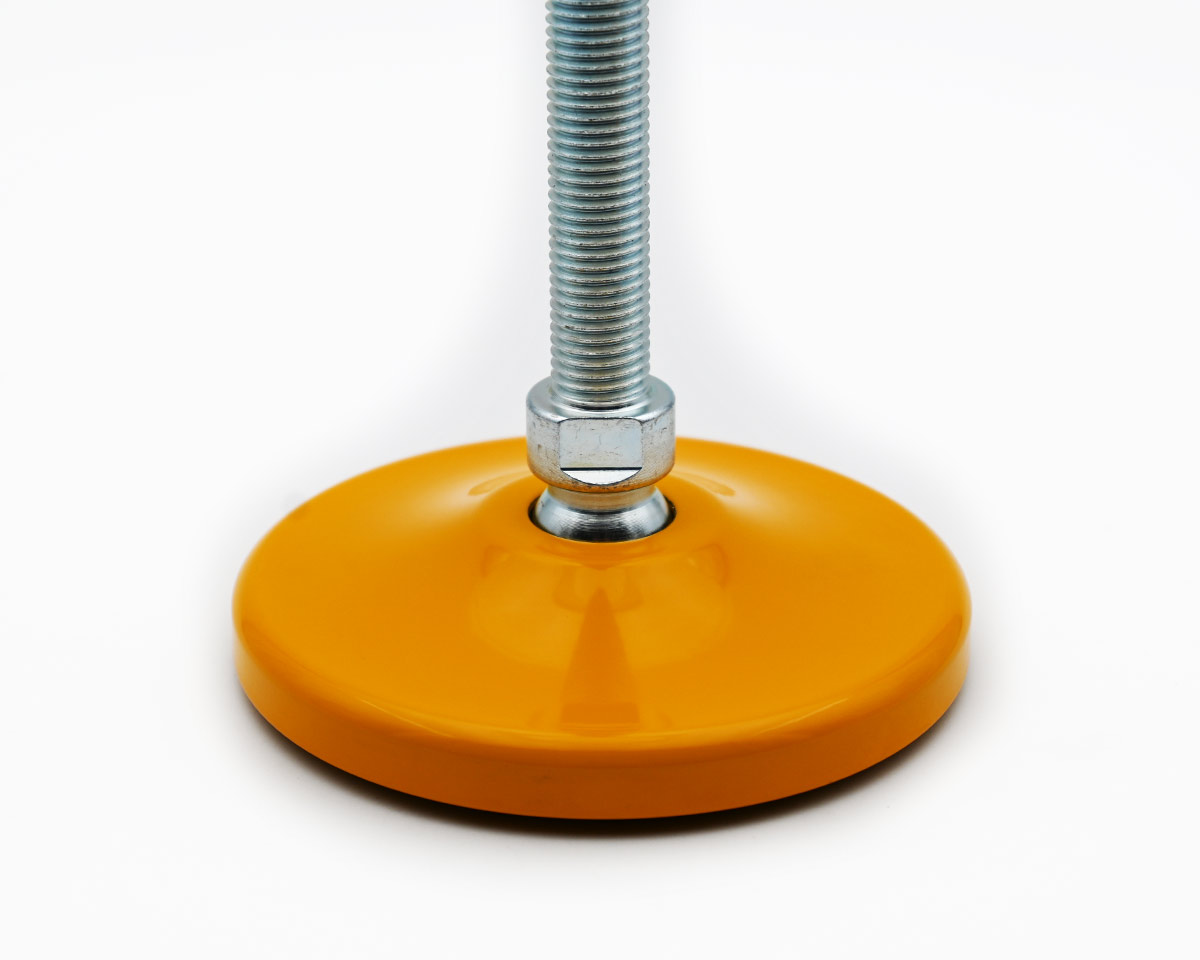

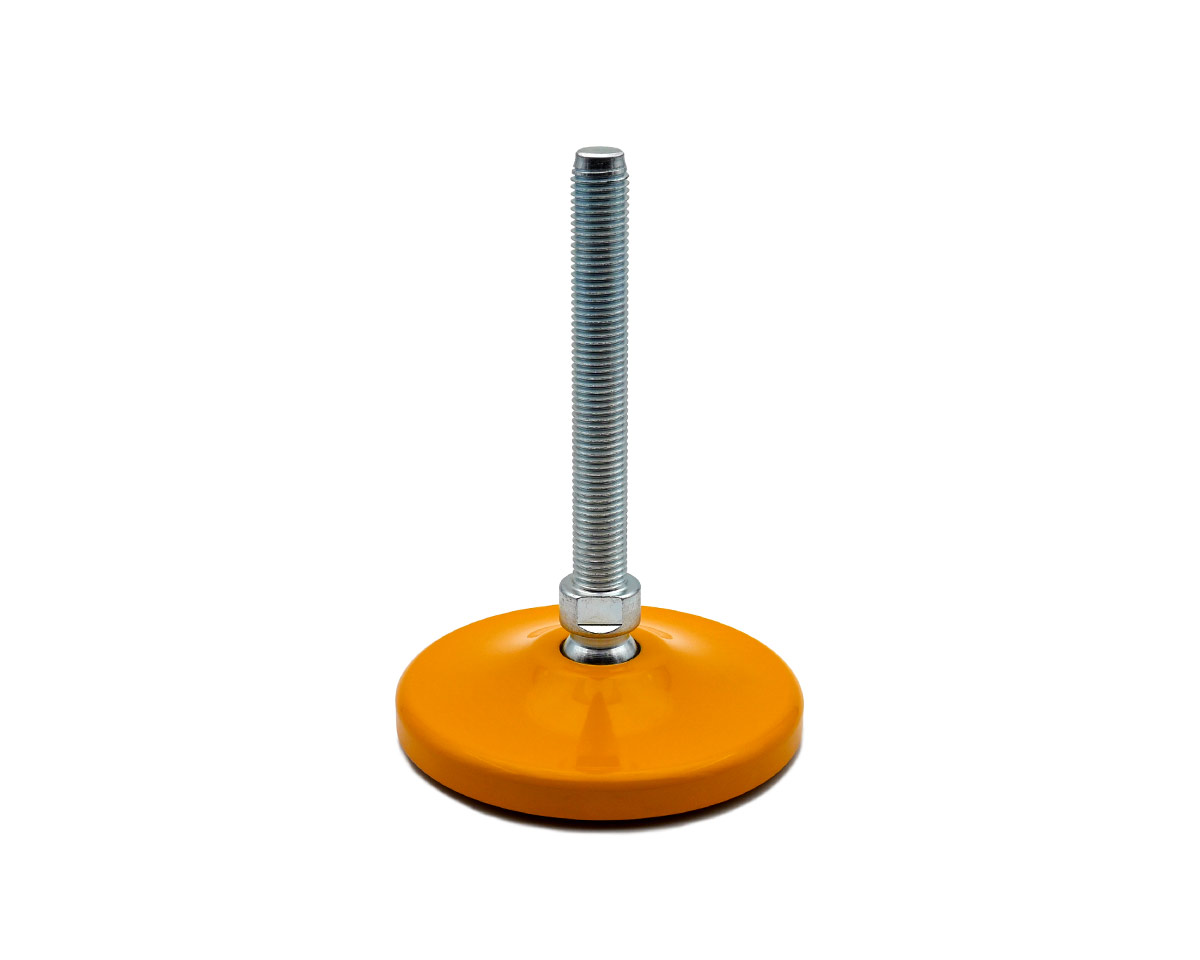

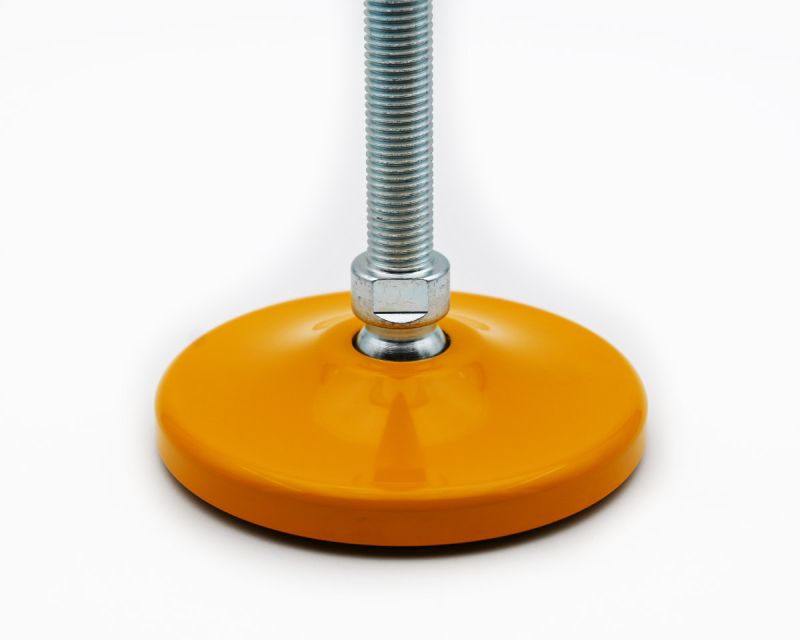

Levelling foot MASSIV Steel, Ø 120 mm, M24 x 75 mm, yellow
Discover the MASSIV Steel Levelling Foot, designed for robust stability with a 120 mm diameter and 55,000 N static load capacity. Perfect for precise adjustments and engineered for durability.
| Quantity | Price |
|---|---|
| From 1 |
€30.23*
|
| From 5 |
€28.95*
|
| From 15 |
€28.03*
|
| From 50 |
€27.66*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 75 |
| Balancing angle: | 30° |
| Hygiene: | No |

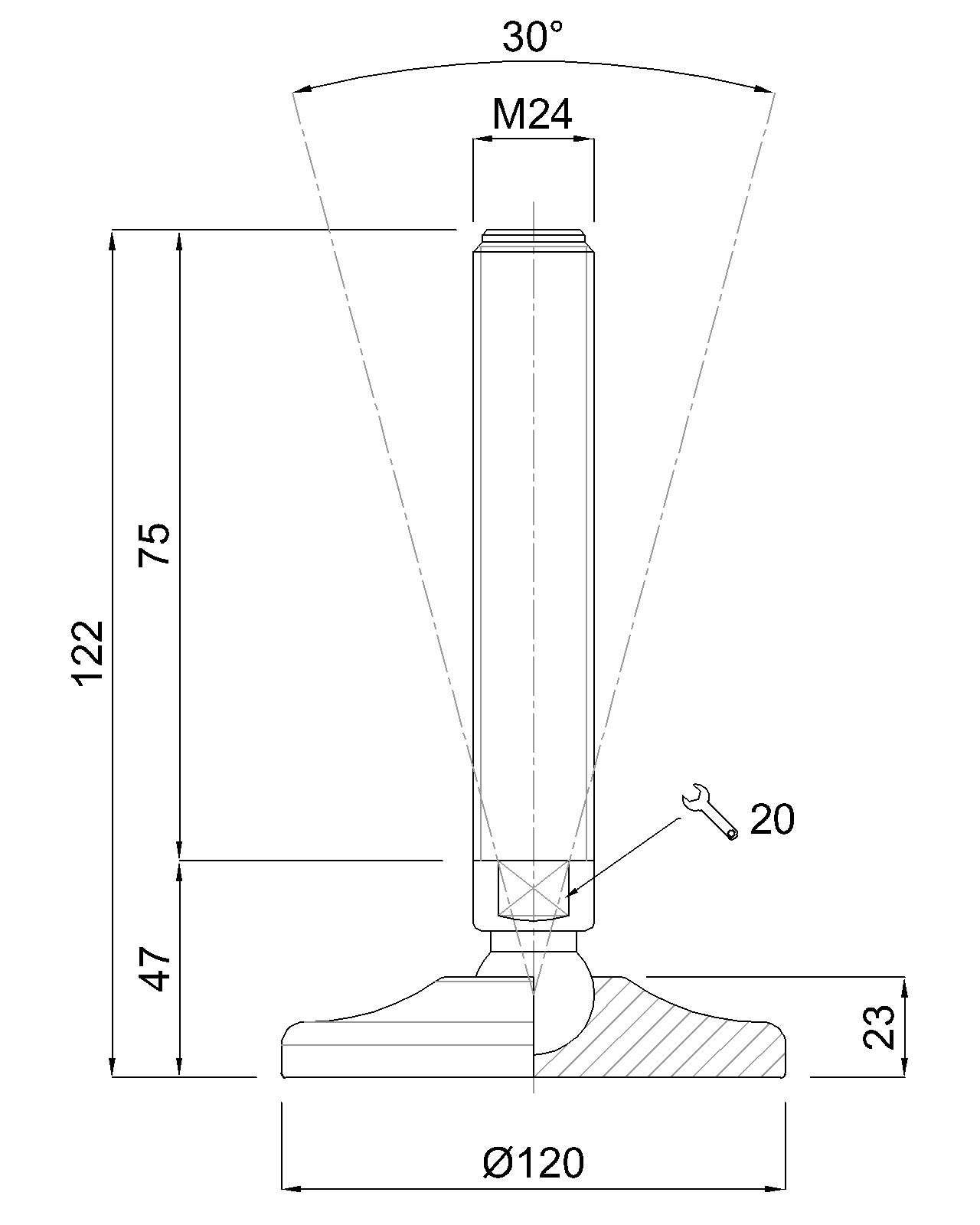

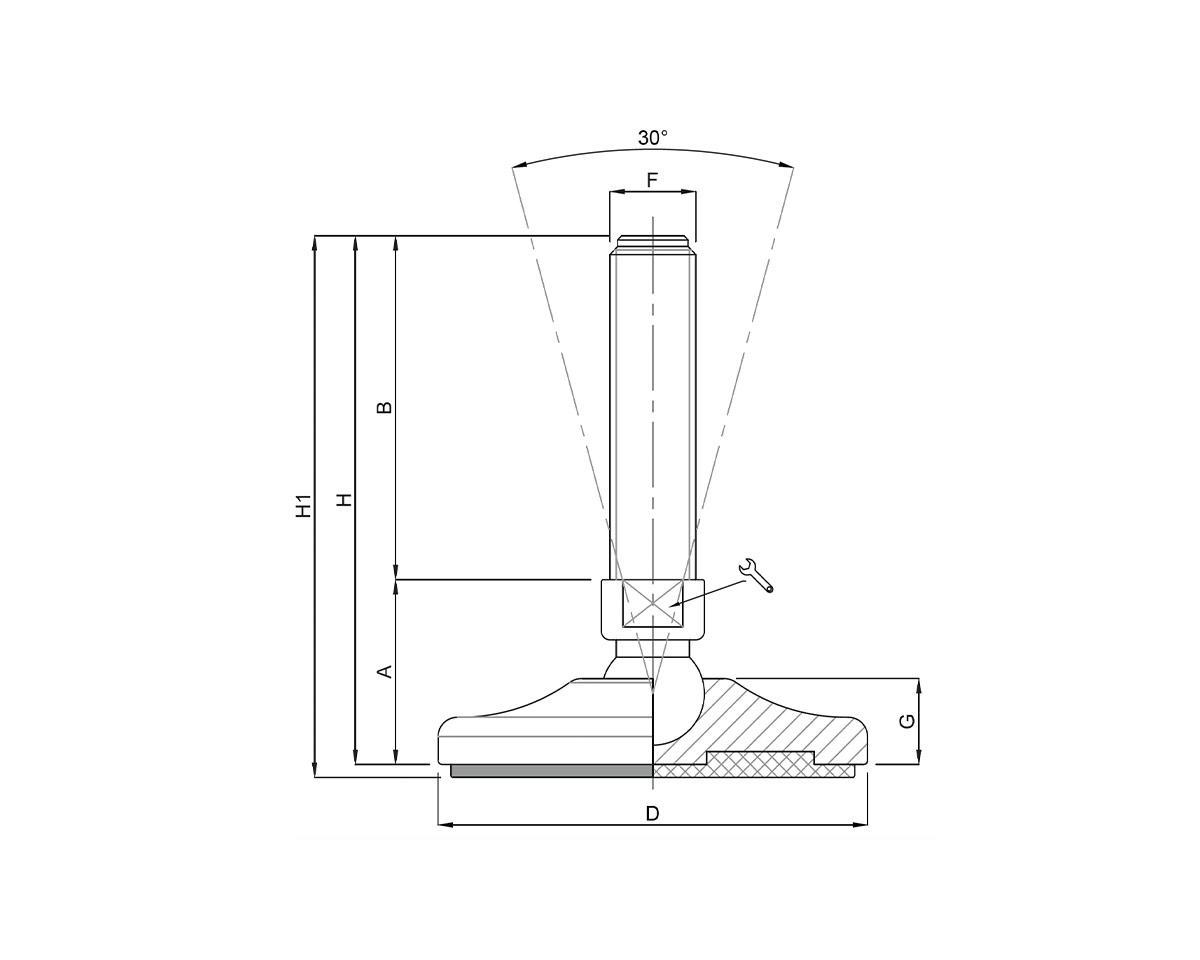

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
