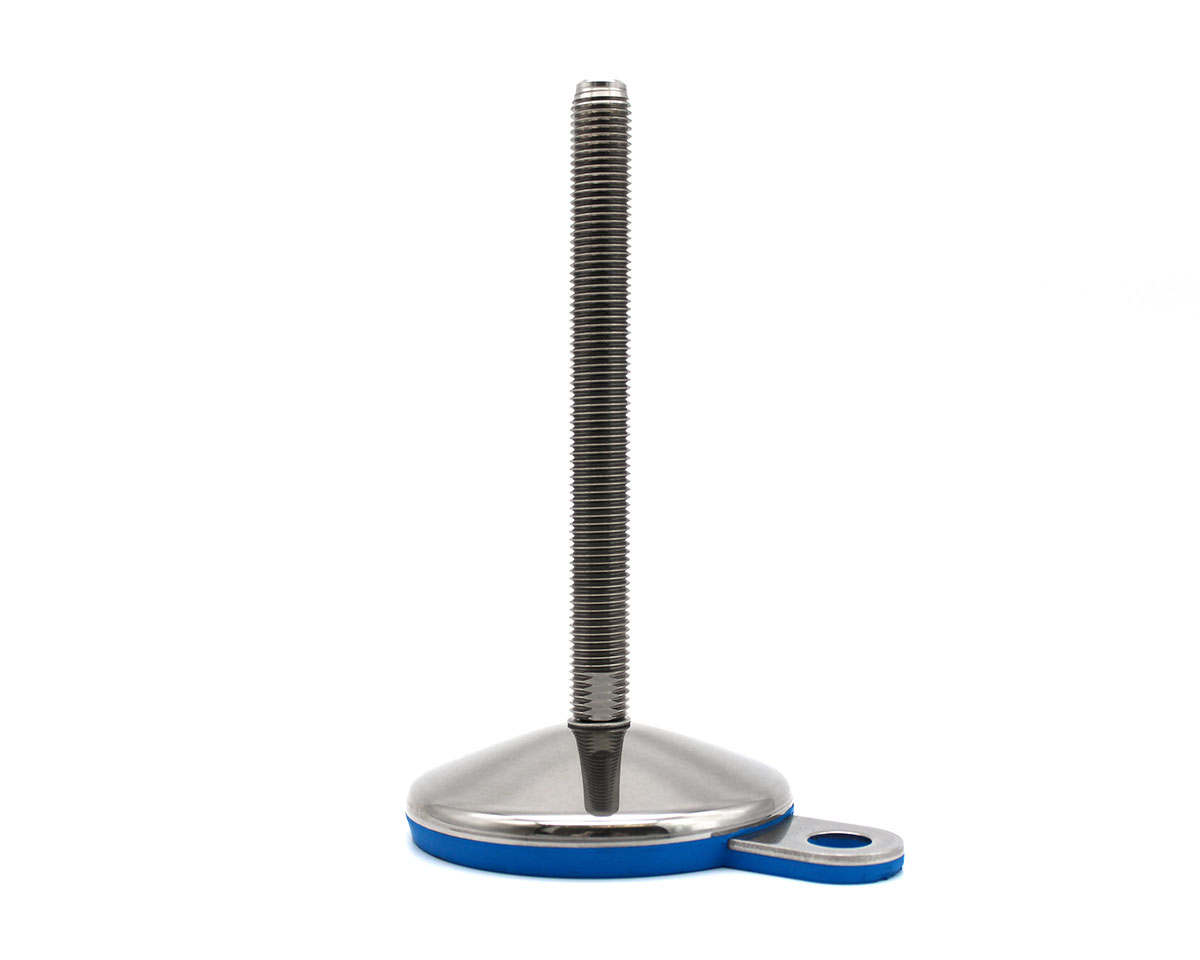

Levelling foot VULCANIZED stainless steel, Ø 100 mm, M16 x 200 mm, Lug, EPDM
Experience superior stability with our VULCANIZED stainless steel leveling foot, designed for M16 applications. Featuring a robust 100 mm base, articulated screw, and slip-resistant EPDM, it supports loads up to 15,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€18.40*
|
| From 13 |
€17.27*
|
| From 25 |
€16.14*
|
| From 50 |
€15.35*
|
42 on stock, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 1 mounting lug |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 200 |
| Balancing angle: | 10° |
| Hygiene: | No |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
