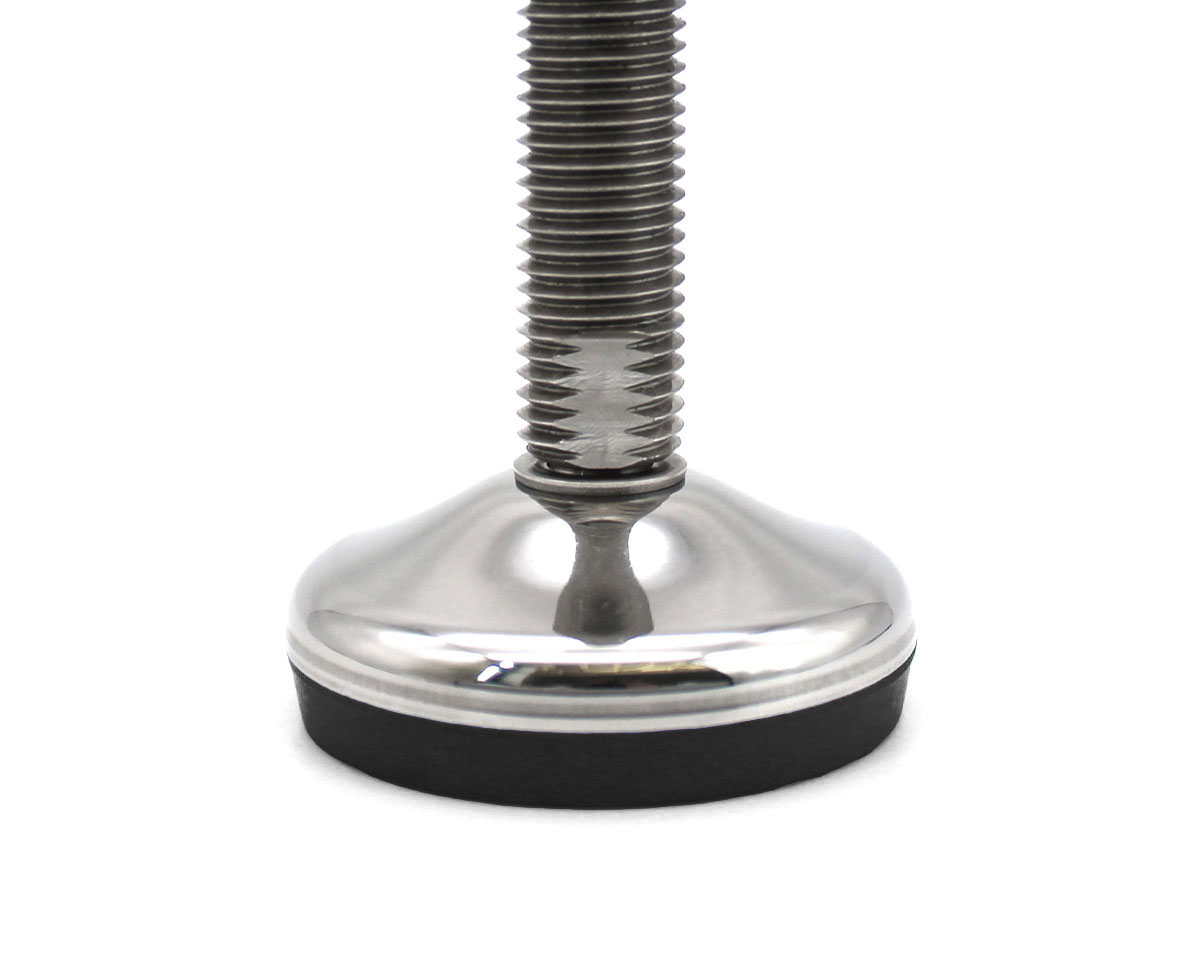

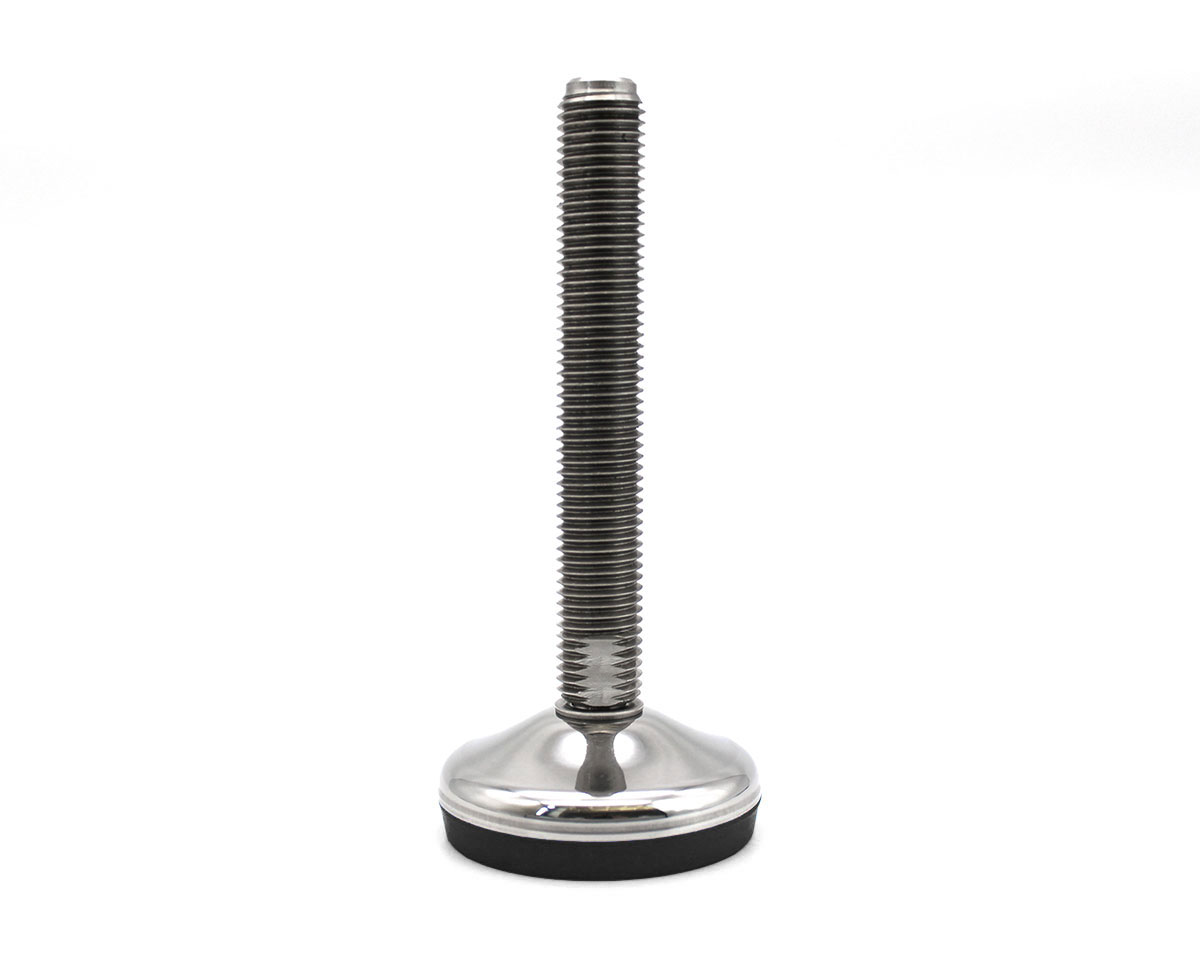

Levelling foot VULCANIZED stainless steel, Ø 60 mm, M20 x 150 mm, NBR
Introducing our VULCANIZED stainless steel leveling foot, designed for robust support with a 60 mm diameter and a 150 mm adjustable M20 screw. Engineered for static loads up to 7,000 N, it features NBR anti-slip material and a 10° articulated angle for optimal stability in various applications.
| Quantity | Price |
|---|---|
| From 1 |
€13.51*
|
| From 13 |
€12.69*
|
| From 25 |
€11.88*
|
| From 50 |
€11.30*
|
44 on stock, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 10° |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
