Levelling foot VULCANIZED stainless steel, Ø 100 mm, M24 x 125 mm, Hygenic, EPDM
Enhance stability and hygiene in your applications with our VULCANIZED stainless steel leveling foot. With a diameter of 100mm, static load capacity of 15,000N, and a 10° articulated screw, it offers superior support and anti-slip performance.
| Quantity | Price |
|---|---|
| From 1 |
€24.52*
|
| From 13 |
€23.01*
|
| From 25 |
€21.51*
|
| From 50 |
€20.45*
|
Currently sold out, Refill time: 8 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 91-110 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 125 |
| Balancing angle: | 10° |

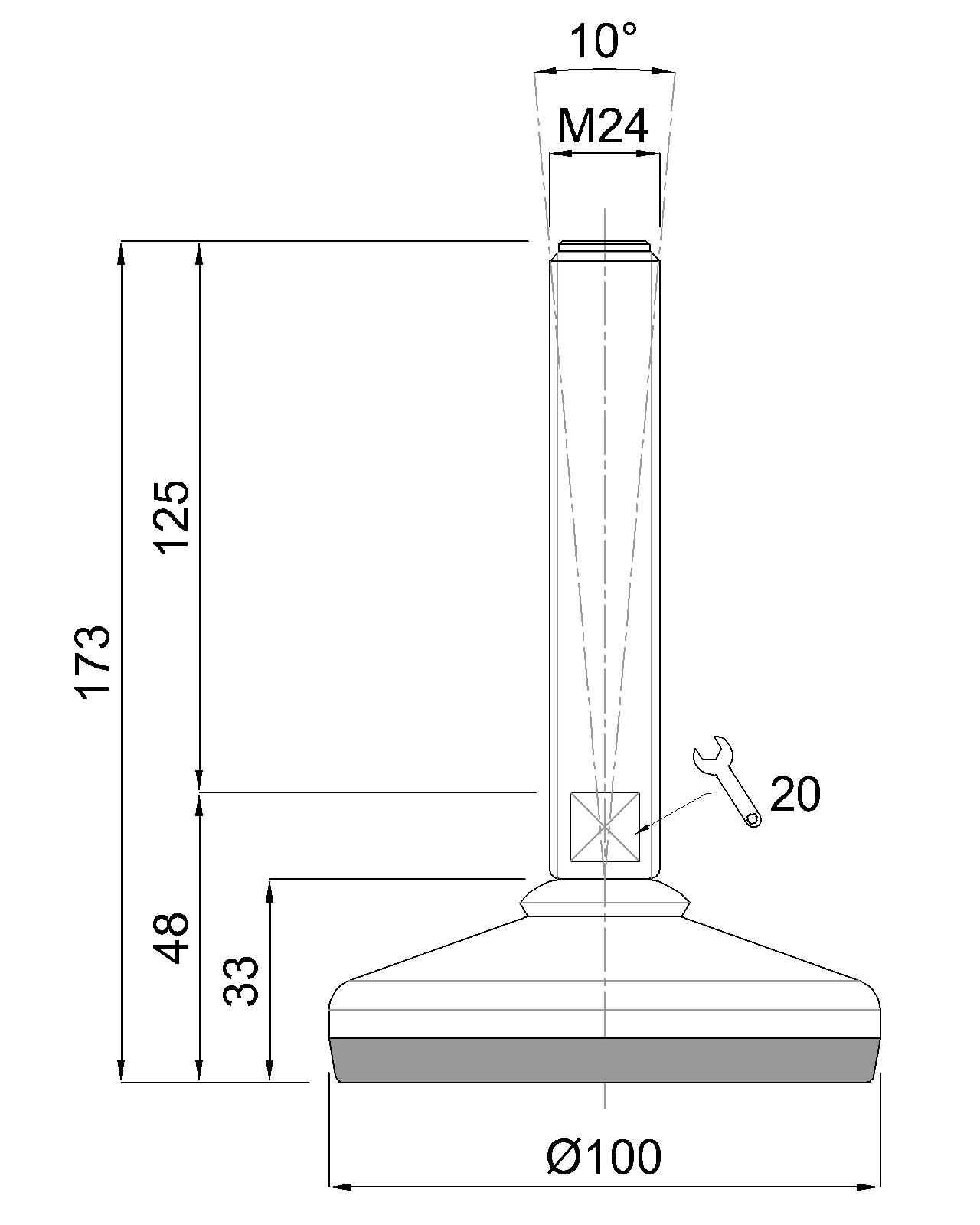

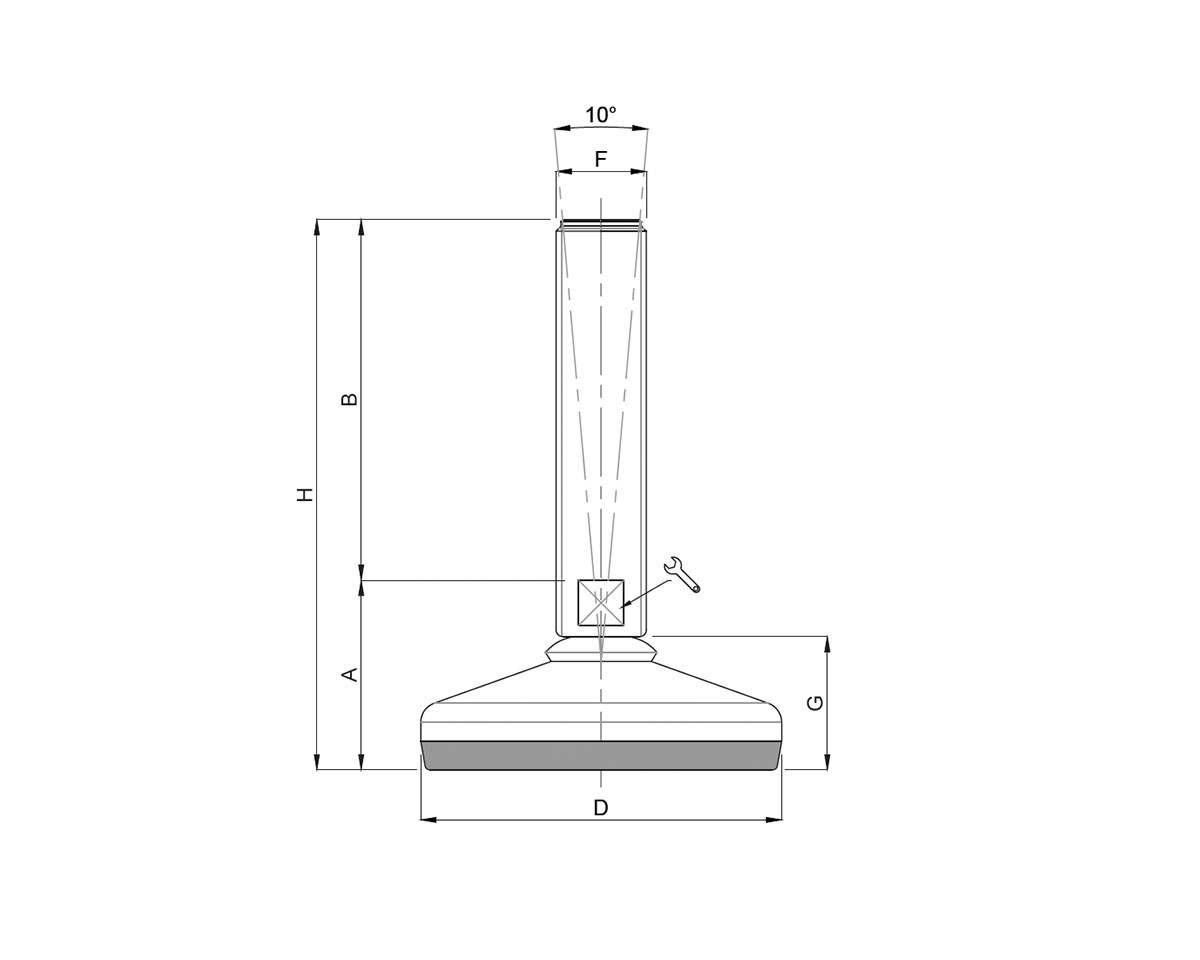

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
