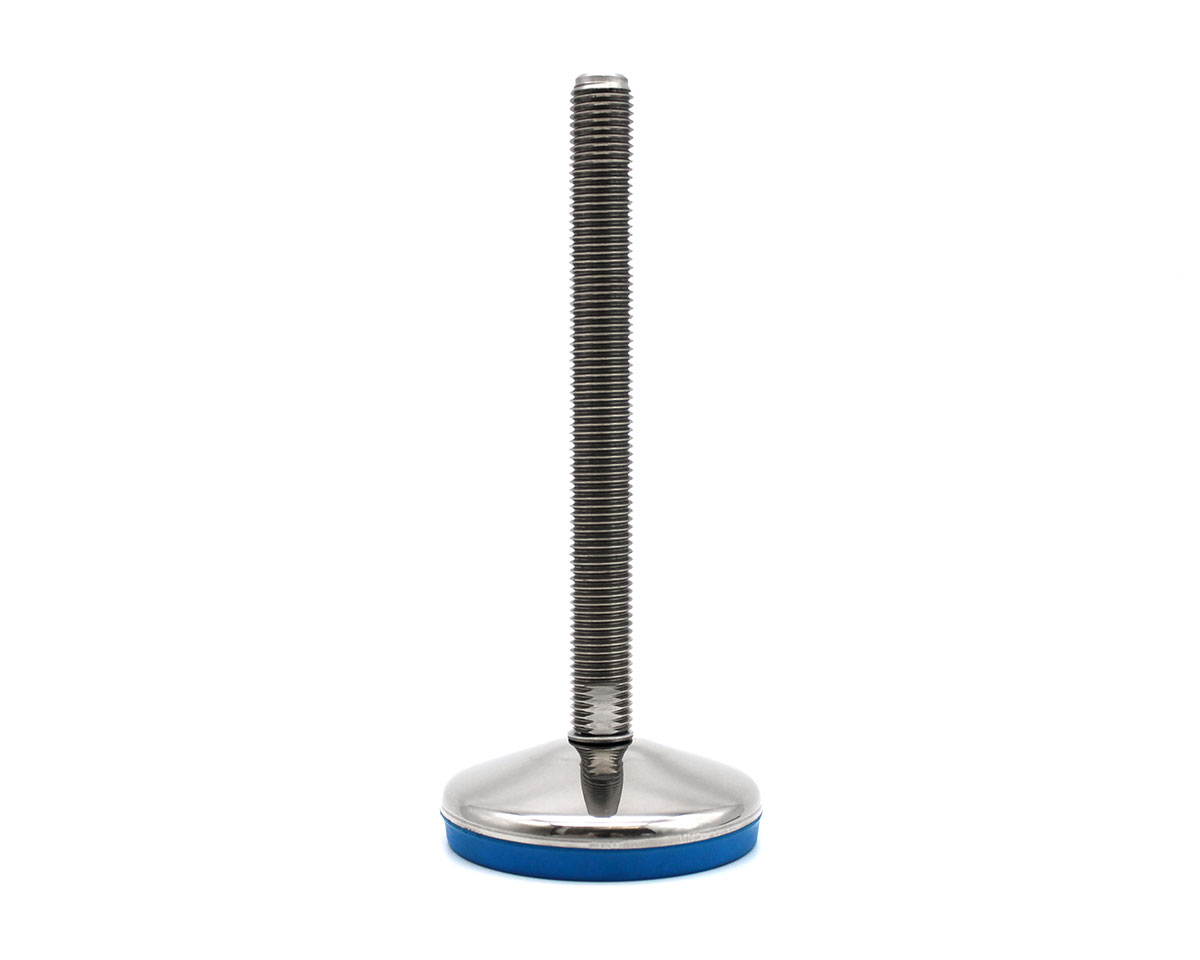

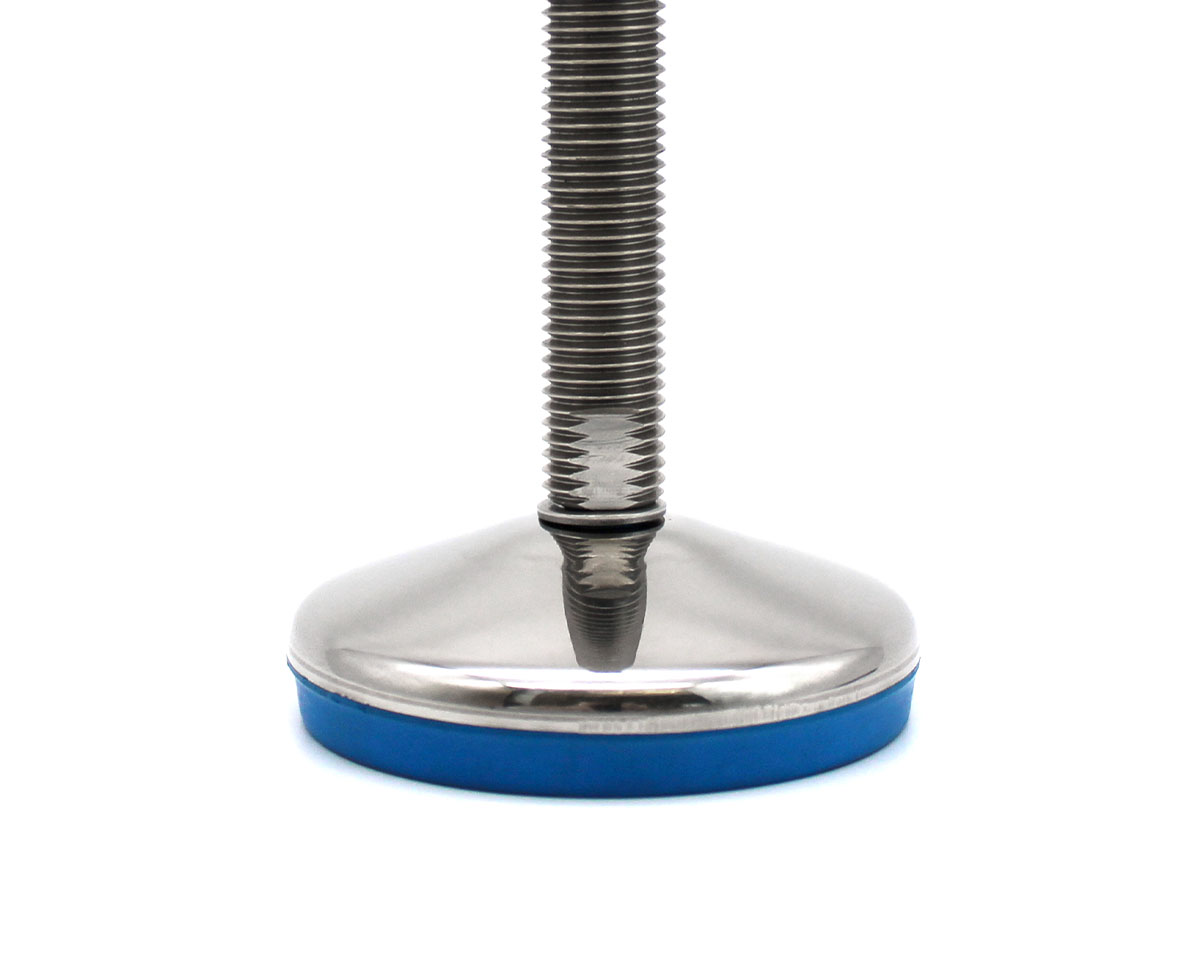

Levelling foot VULCANIZED stainless steel, Ø 80 mm Stainless steel, M16 x 225 mm, EPDM
Introducing our VULCANIZED stainless steel leveling foot, designed for stability and strength. With an anti-slip EPDM base and a static load capacity of 10,000 N, it ensures robust support for your applications.
| Quantity | Price |
|---|---|
| From 1 |
€14.52*
|
| From 13 |
€13.63*
|
| From 25 |
€12.74*
|
| From 50 |
€12.12*
|
20 on stock, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 71-90 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 225 |
| Balancing angle: | 10° |
| Hygiene: | No |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
