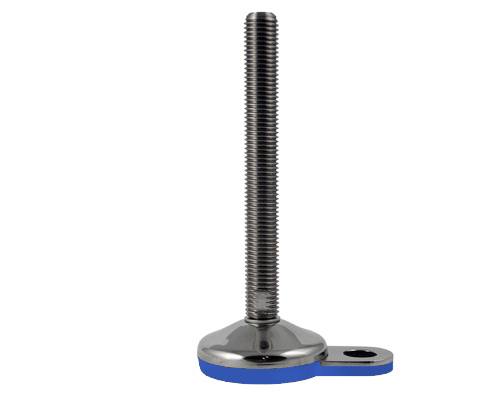

Levelling foot VULCANIZED stainless steel, Ø 80 mm, M14 x 175 mm, Lug, EPDM
Enhance stability with our VULCANIZED stainless steel leveling foot, featuring an 80 mm diameter and M14 x 175 mm threaded spindle. Designed for static loads up to 10,000 N, its articulated screw allows for a 10° adjustment, while the anti-slip EPDM ensures secure placement. Ideal for engineers and manufacturers seeking reliable support solutions.
| Quantity | Price |
|---|---|
| From 1 |
€15.63*
|
| From 13 |
€14.67*
|
| From 25 |
€13.71*
|
| From 50 |
€13.04*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 1 mounting lug |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 14 |
| Spindle length (mm): | 175 |
| Balancing angle: | 10° |
| Hygiene: | No |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
