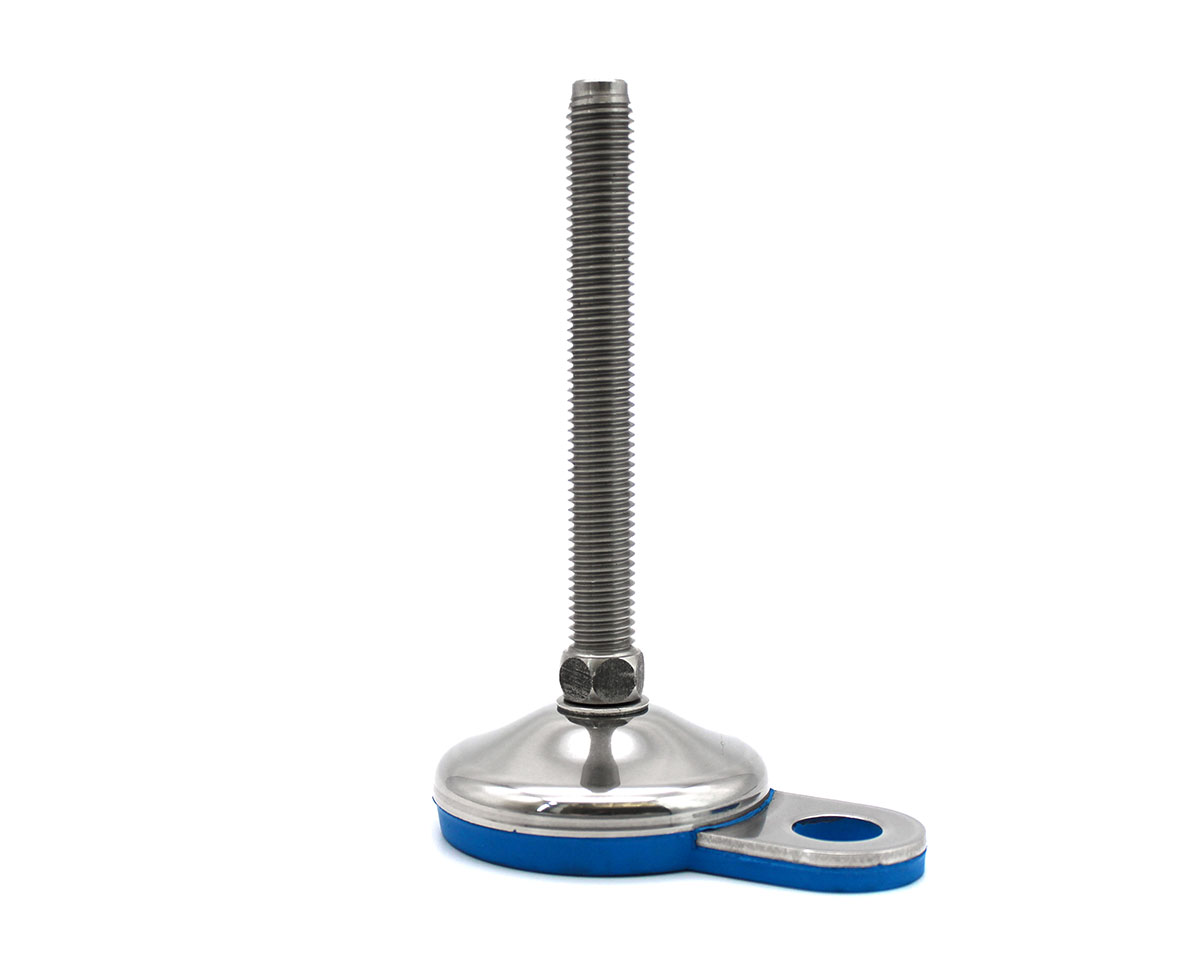

Levelling foot VULCANIZED stainless steel, Ø 60 mm, M20 x 175 mm, Lug, EPDM
Discover our vulcanized stainless steel leveling foot, featuring a 60 mm diameter and M20 x 175 mm threaded spindle. Engineered for stability with an articulated screw, it supports static loads up to 7,000 N while ensuring anti-slip protection with blue EPDM. Perfect for precision applications.
| Quantity | Price |
|---|---|
| From 1 |
€16.67*
|
| From 13 |
€15.65*
|
| From 25 |
€14.63*
|
| From 50 |
€13.91*
|
13 on stock, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 51-70 |
| Ground fastening: | 1 mounting lug |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 175 |
| Balancing angle: | 10° |
| Hygiene: | No |
| Brake: | No |
| Steerable: | no |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
