Levelling foot MASSIV Stainless Steel, Ø 159 mm, M24 x 150 mm
Discover the MASSIV Stainless Steel Levelling Foot, designed for optimal stability with a static load capacity of 60,000 N. Its robust 159 mm diameter and 30° articulated screw ensure precise adjustments for various applications.
| Quantity | Price |
|---|---|
| From 1 |
€95.67*
|
| From 13 |
€89.87*
|
| From 25 |
€84.07*
|
| From 50 |
€80.01*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 150 |
| Balancing angle: | 30° |
| Hygiene: | No |

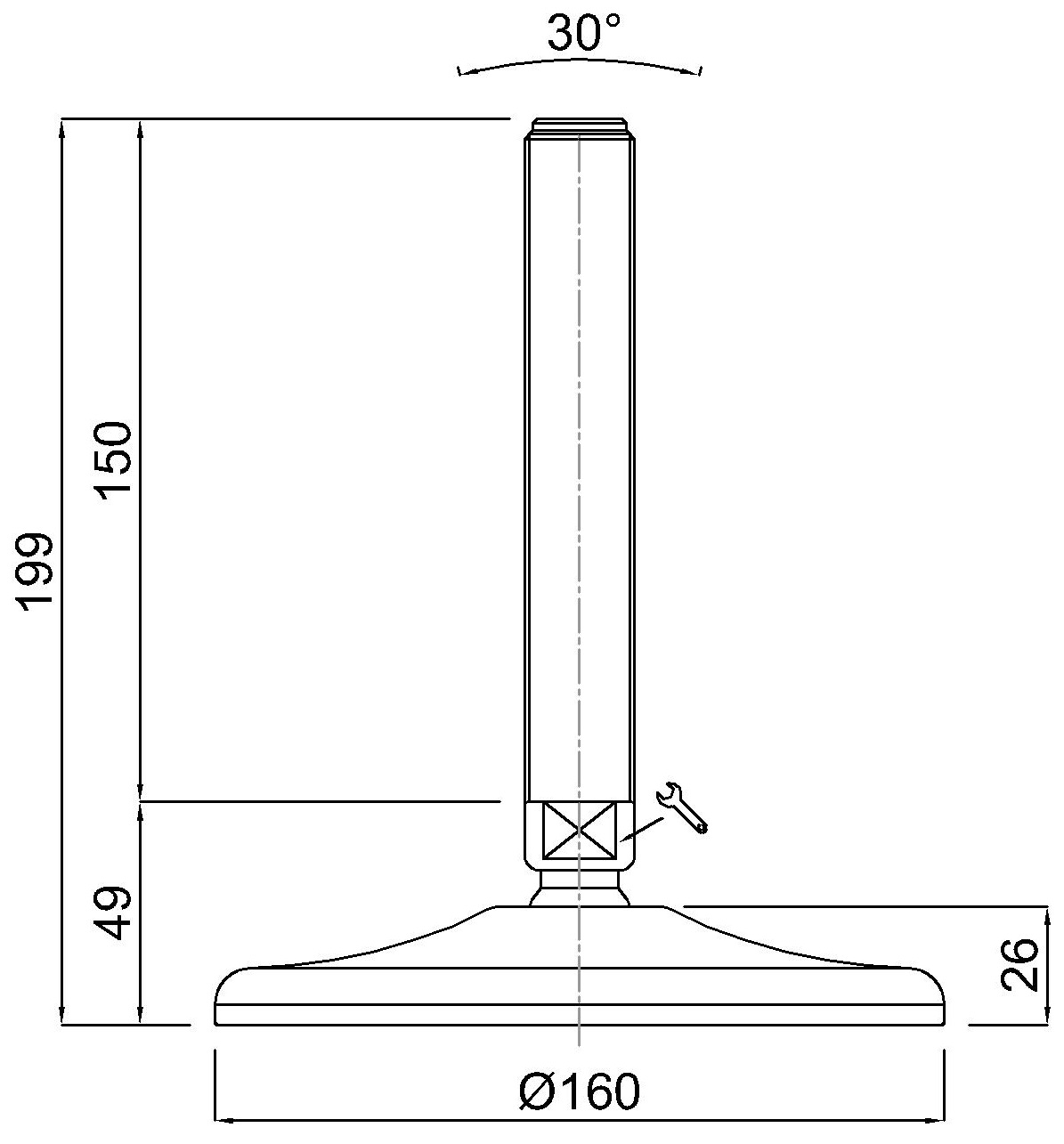

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
