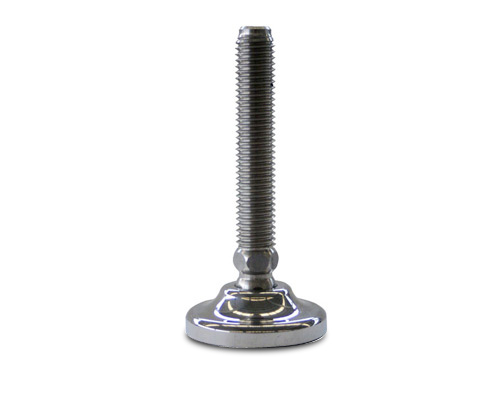

Levelling foot MASSIV Stainless Steel, Ø 50 mm, M12 x 50 mm, NBR
Optimize your applications with the MASSIV Stainless Steel Levelling Foot, featuring a 50 mm diameter, M12 x 50 mm spindle, and a 30° adjustable angle for precise leveling. Antislip NBR ensures stability under static loads up to 15,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€20.64*
|
| From 13 |
€19.39*
|
| From 25 |
€18.14*
|
| From 50 |
€17.26*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 41-50 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 50 |
| Balancing angle: | 30° |

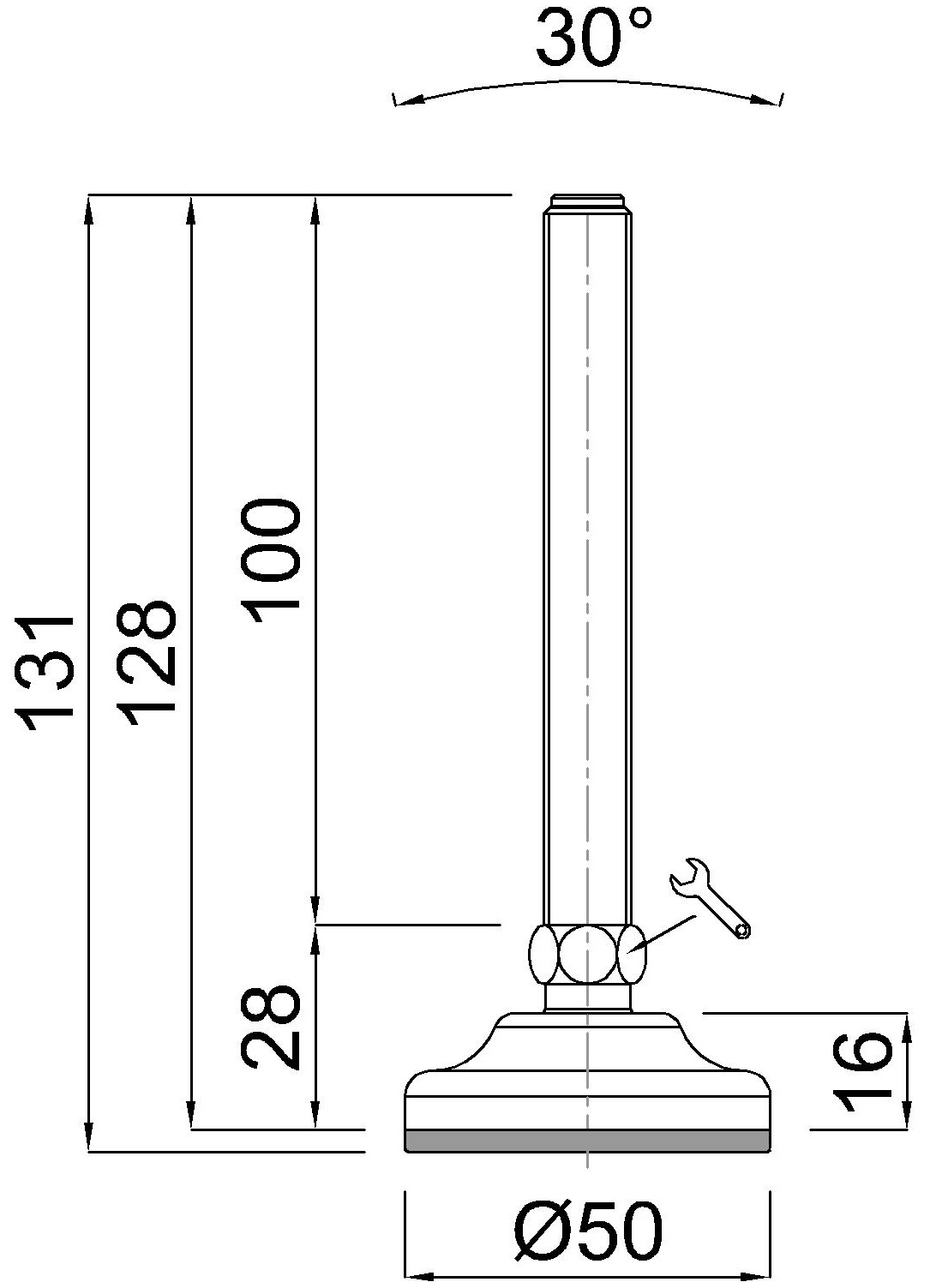

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
