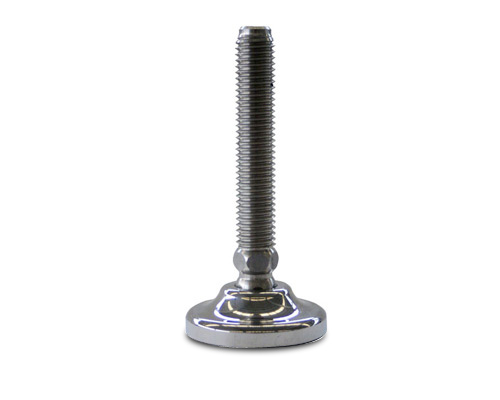

Levelling foot MASSIV Stainless Steel, Ø 50 mm, M10 x 100 mm, NBR
Discover our PREMIUM Levelling Foot, featuring robust stainless steel construction and an articulated screw for 30° adjustment. Ideal for static loads up to 15,000 N, it ensures stability and anti-slip performance with its black NBR rubber.
| Quantity | Price |
|---|---|
| From 1 |
€20.64*
|
| From 13 |
€19.39*
|
| From 25 |
€18.14*
|
| From 50 |
€17.26*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 41-50 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 10 |
| Spindle length (mm): | 100 |
| Balancing angle: | 30° |

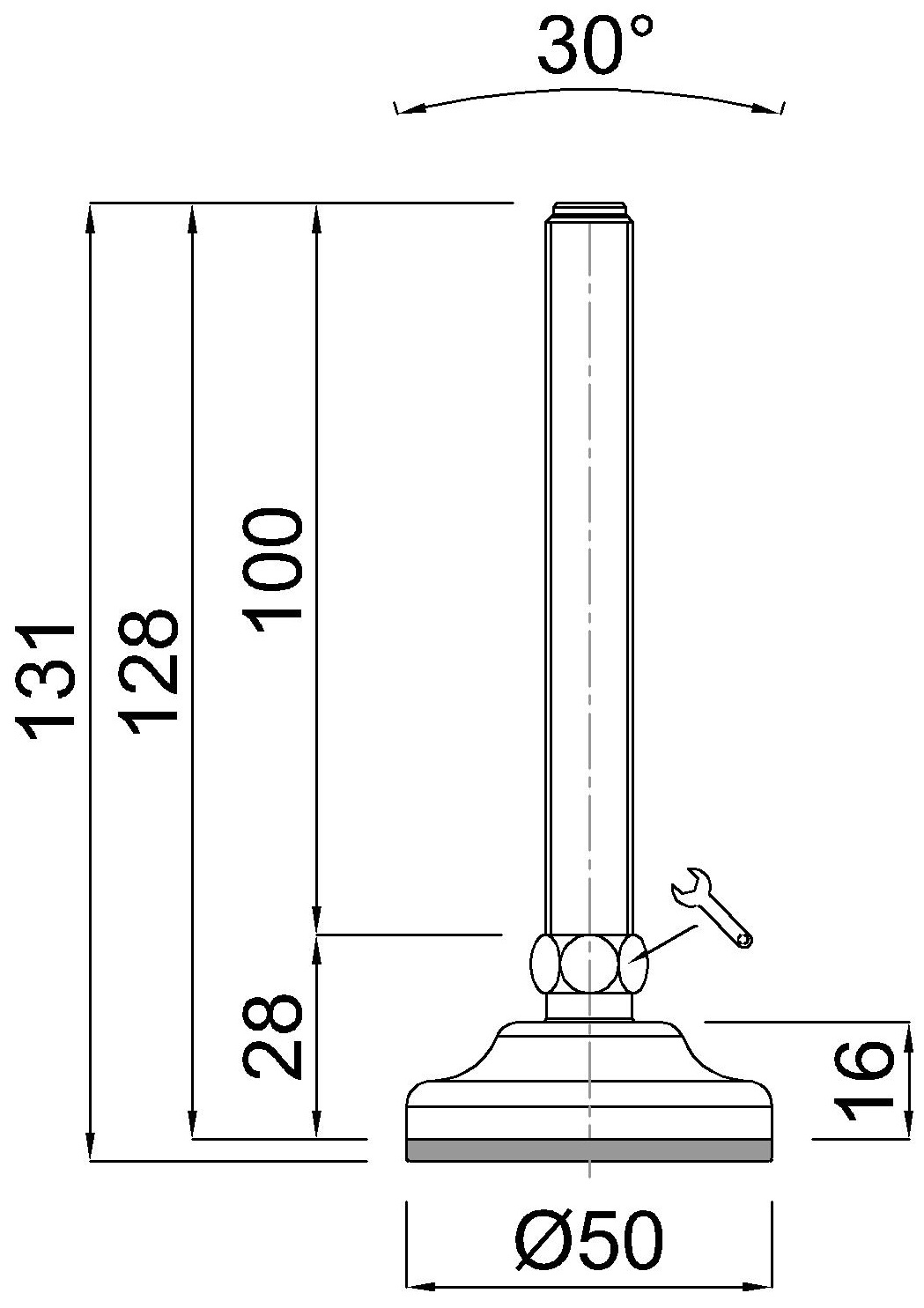

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
