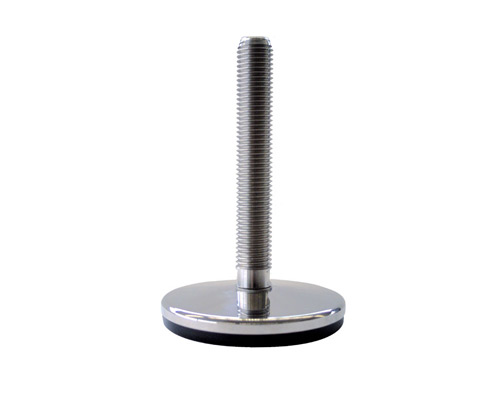

Levelling foot MASSIV Stainless Steel, Ø 120 mm, M24 x 175 mm, NBR
Discover the MASSIV Stainless Steel Levelling Foot, designed for robust performance with a 120 mm diameter and a static load capacity of 40,000 N. Its articulated screw allows adjustments of up to 5°, ensuring stability in various applications.
| Quantity | Price |
|---|---|
| From 1 |
€59.05*
|
| From 13 |
€55.47*
|
| From 25 |
€51.90*
|
| From 50 |
€49.39*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 175 |
| Balancing angle: | 5° |

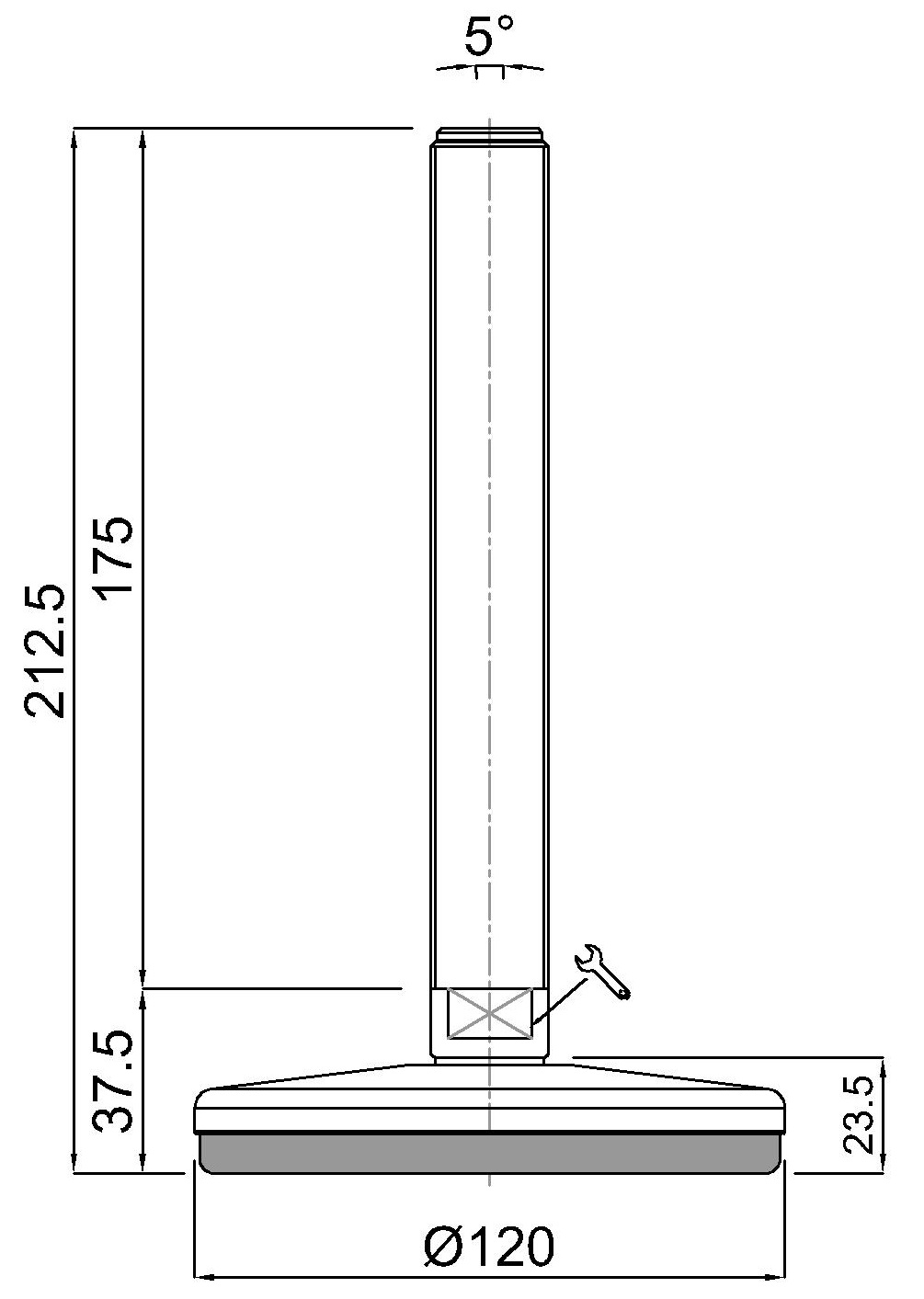

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
