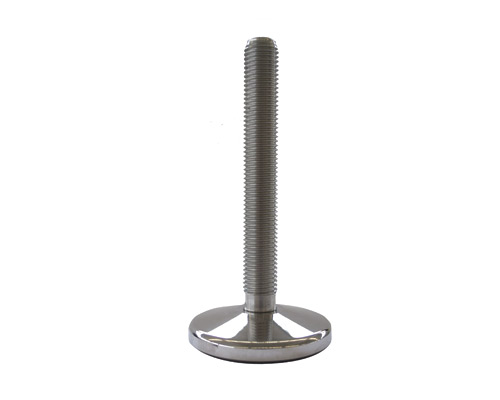

Levelling foot MASSIV Stainless Steel, Ø 159 mm, M20 x 150 mm, NBR
Discover the MASSIV Stainless Steel Leveling Foot, featuring a robust Ø 159 mm plate and M20 x 150 mm threaded spindle, supporting up to 50,000 N static load. Enhance stability with its non-slip NBR base.
| Quantity | Price |
|---|---|
| From 1 |
€88.06*
|
| From 13 |
€82.72*
|
| From 25 |
€77.39*
|
| From 50 |
€73.65*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 0° |

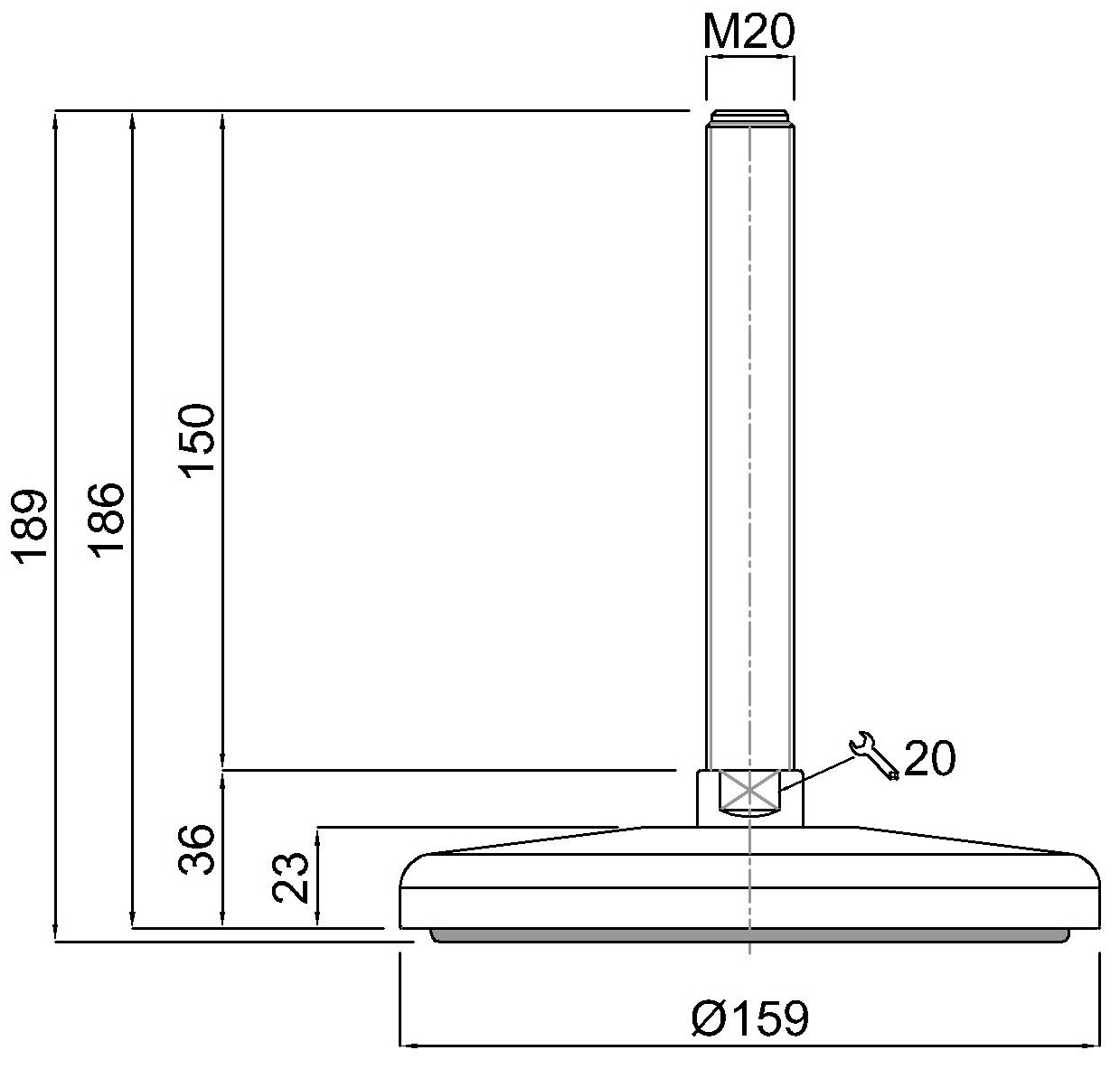

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
