Preview: S16000-3A-S16004-3A-1 Preview: S16000-3A-S16004-3A-2 Preview: maschinenfuss-458S16000-3A-tz
S16000-3A-S16004-3A-1
S16000-3A-S16004-3A-2
maschinenfuss-458S16000-3A-tz

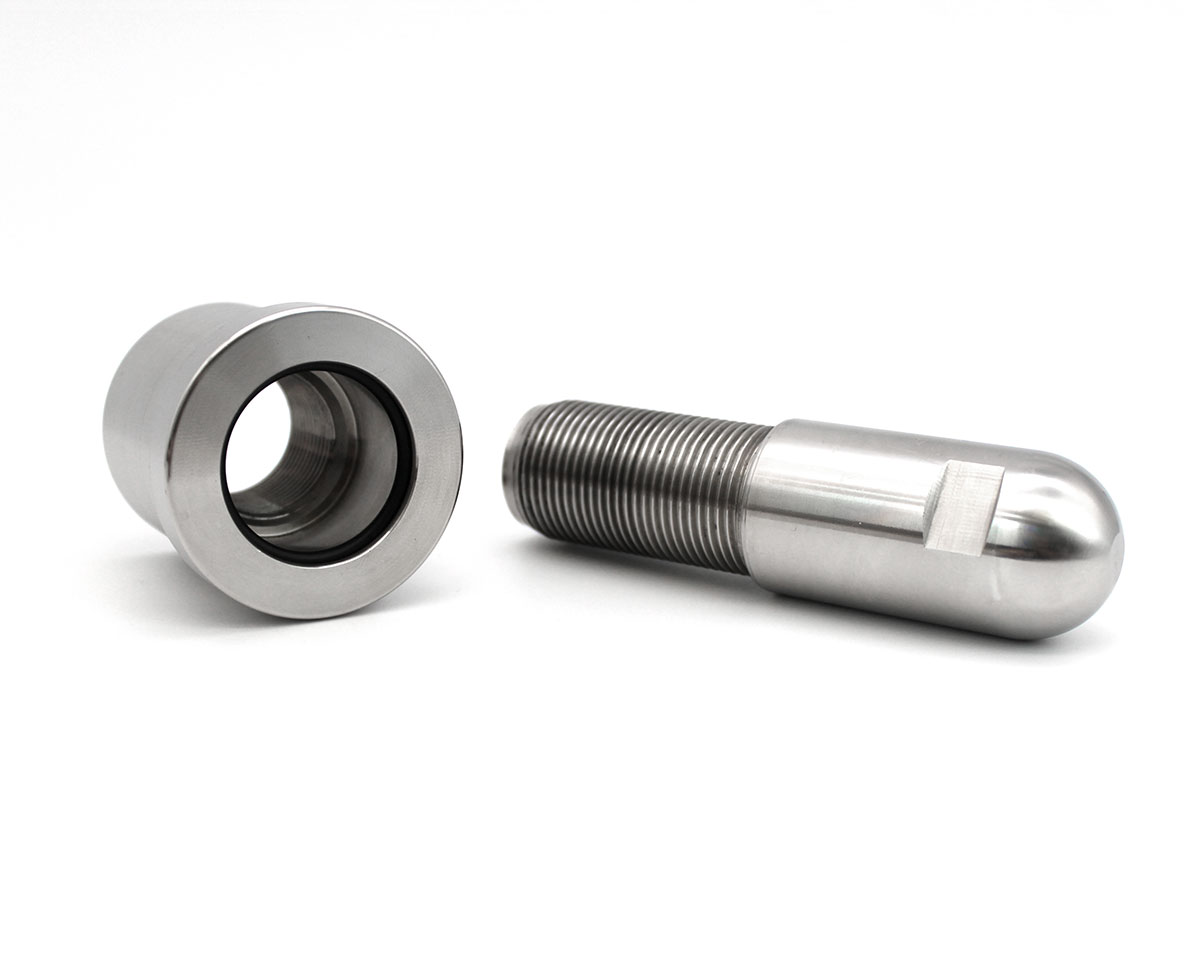

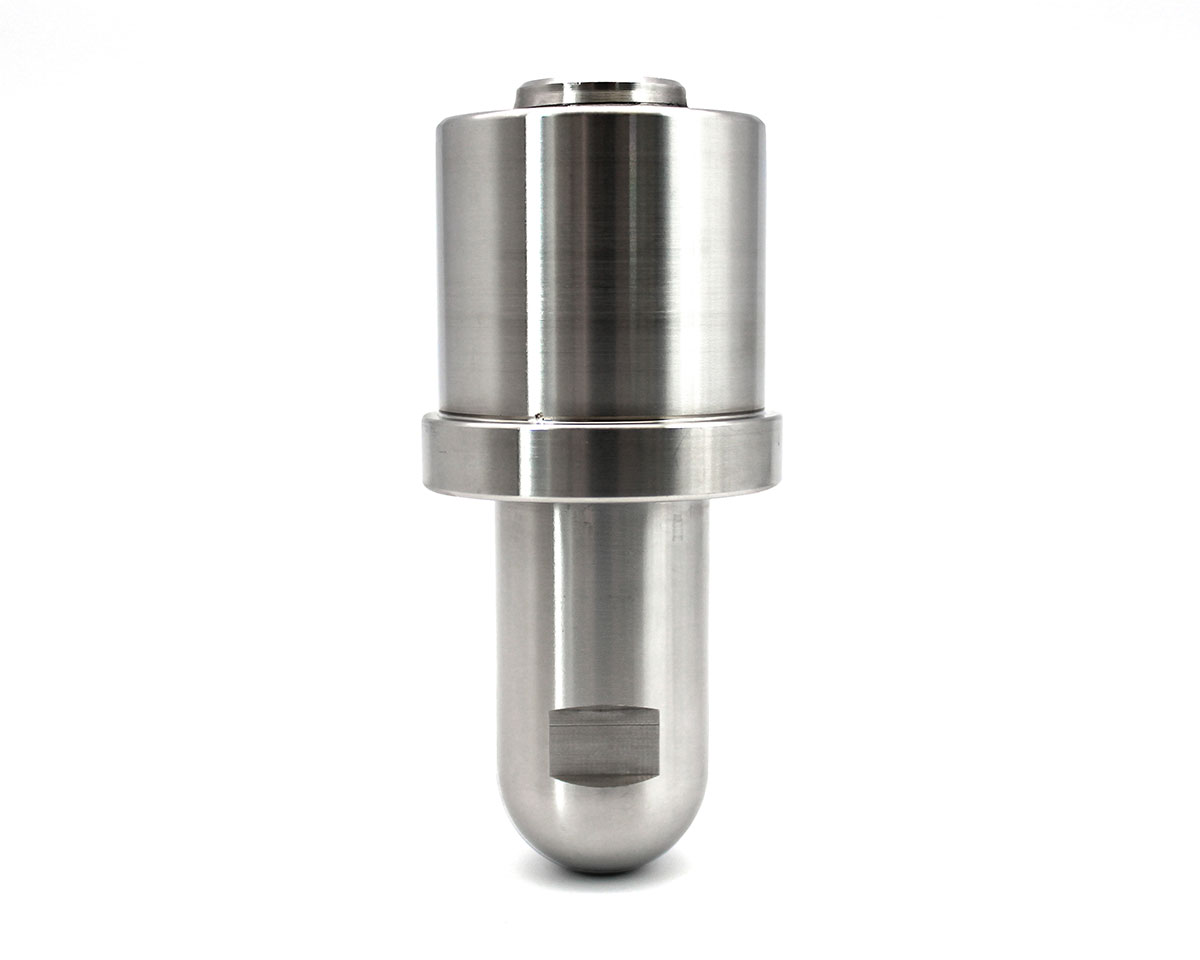

Hygienic 3-A Spherical cap screw stainless steel 3/4" G fine thread

Order number: 4061408135844
Type: 458S16000/3A
CAD
Certificates

0 Pieces Delivery time 5 Workdays

Quantity Unit price
Up to 12 €32.37 *
From 13 €31.67 *
From 41 €31.20 *
€32.37 /Pcs.
Add to parts list

plus tax and shipping costs

Product information
Tank support bolt stainless steel 3/4" G fine thread, Total height: 110 mm, (welding-) bushing... more
Close menu

Product information

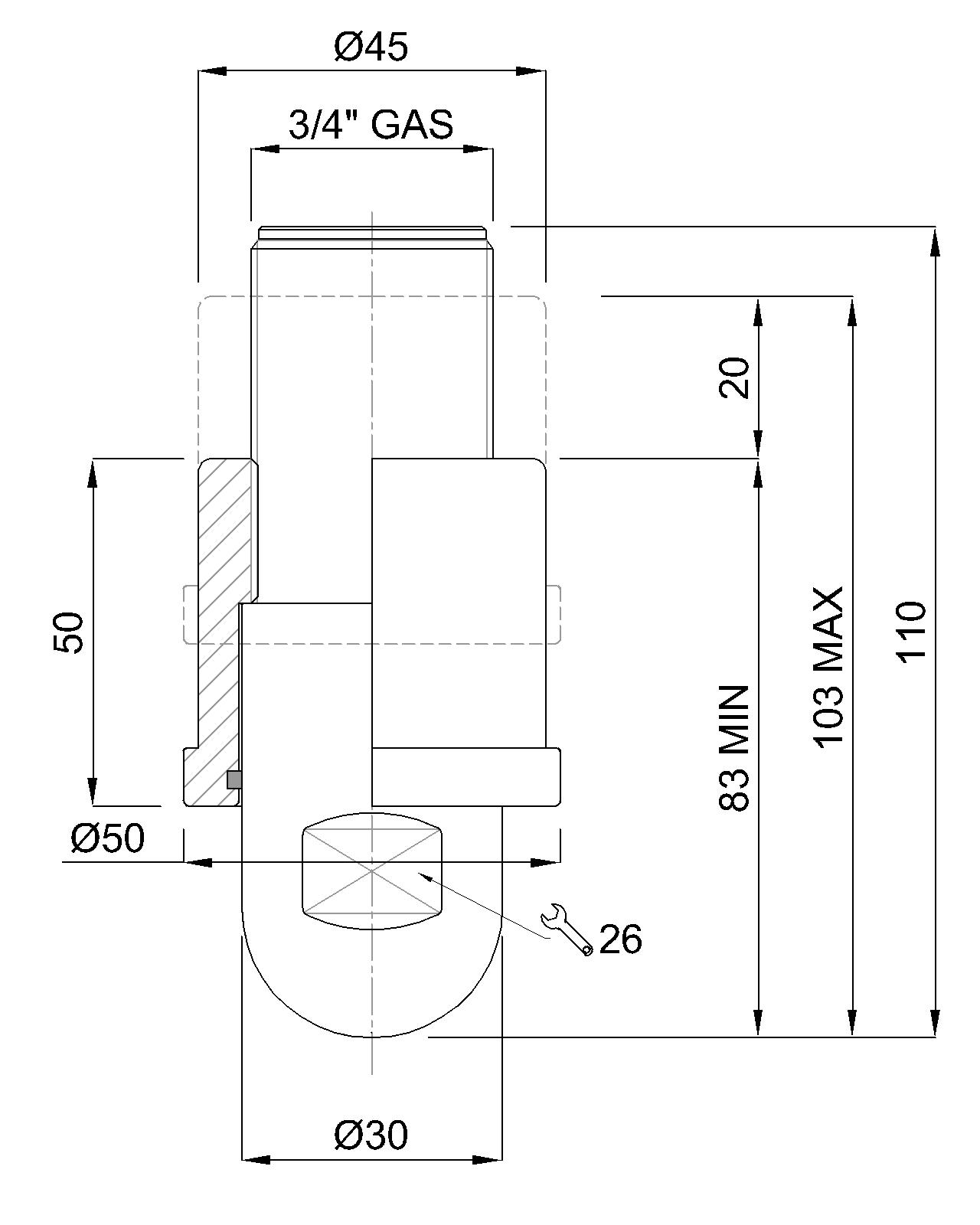

Tank support bolt stainless steel 3/4" G fine thread, Total height: 110 mm, (welding-) bushing stainless steel h=50mm, adjustment 20 mm, 3-A certified, static load 70.000 Newton
Material foot plate: Solid stainless steel
Material spindle: Stainless steel
Diameter spindle (mm): G3/4"
Length range spindle (mm): 100
Special feature: 3-A Sanitary Standard
Floor mounting: No
