Levelling foot ECO16 PA Stainless steel, Ø 83 mm, M20 x 250 mm
Introducing the ECO16 Levelling Foot: made from durable polyamide and stainless steel, it features a versatile 83 mm diameter base and an articulated screw that accommodates 16° angles, supporting static loads up to 20,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€17.37*
|
| From 5 |
€15.52*
|
| From 15 |
€13.86*
|
| From 50 |
€13.58*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic VA Cover |
| Anti-slip: | No |
| Ø range base plate (mm): | 71-90 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 250 |
| Balancing angle: | 16° |
| Hygiene: | No |

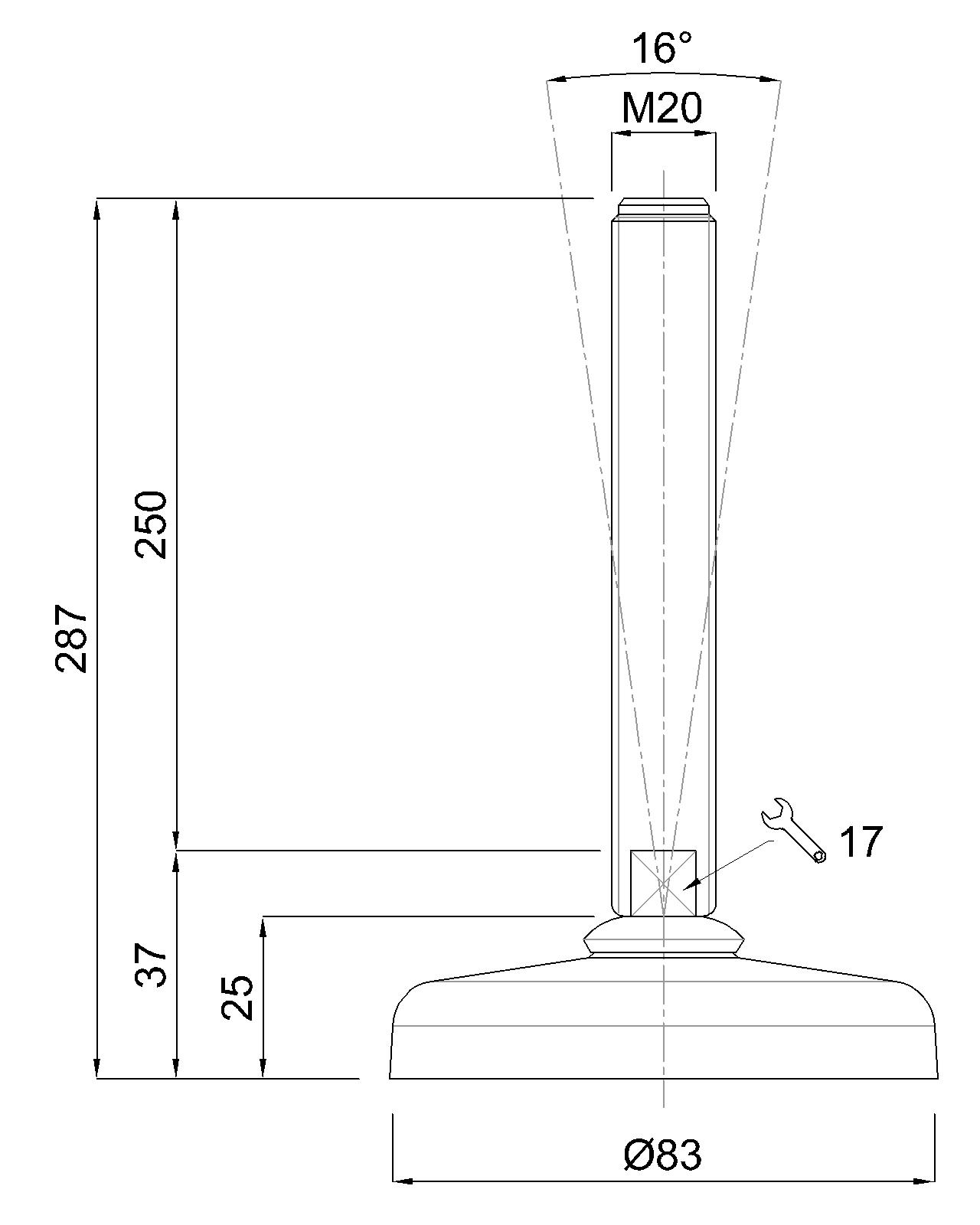

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
