Levelling foot ECO30 PA Stainless steel, Ø 103 mm, M24 x 200 mm
The ECO30 levelling foot combines durable stainless steel and polyamide, offering exceptional stability with a static load capacity of 25,000 N and an adjustable angle of 30°.
| Quantity | Price |
|---|---|
| From 1 |
€19.31*
|
| From 5 |
€17.25*
|
| From 15 |
€15.41*
|
| From 50 |
€15.10*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic VA Cover |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 200 |
| Balancing angle: | 30° |
| Hygiene: | No |

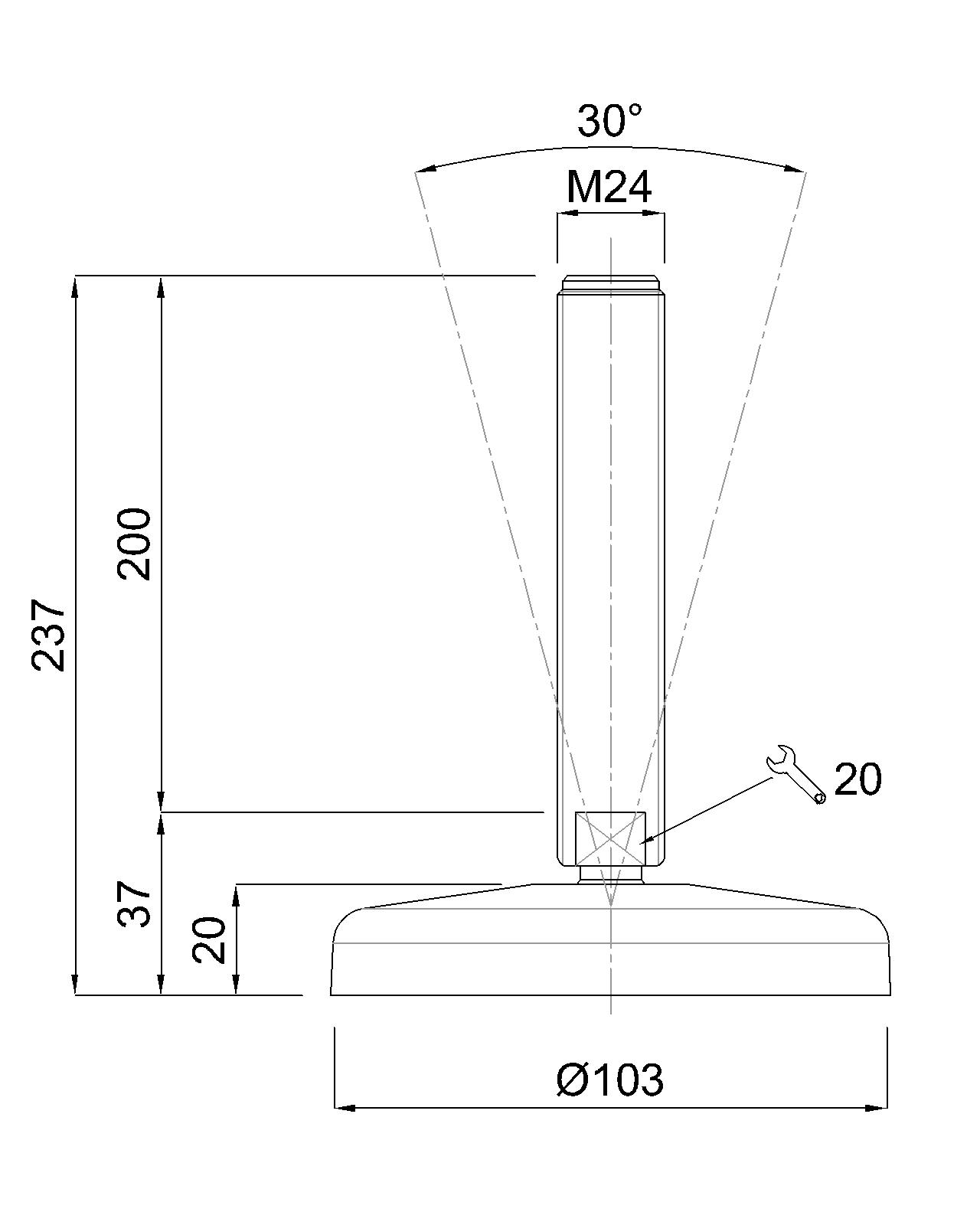

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
