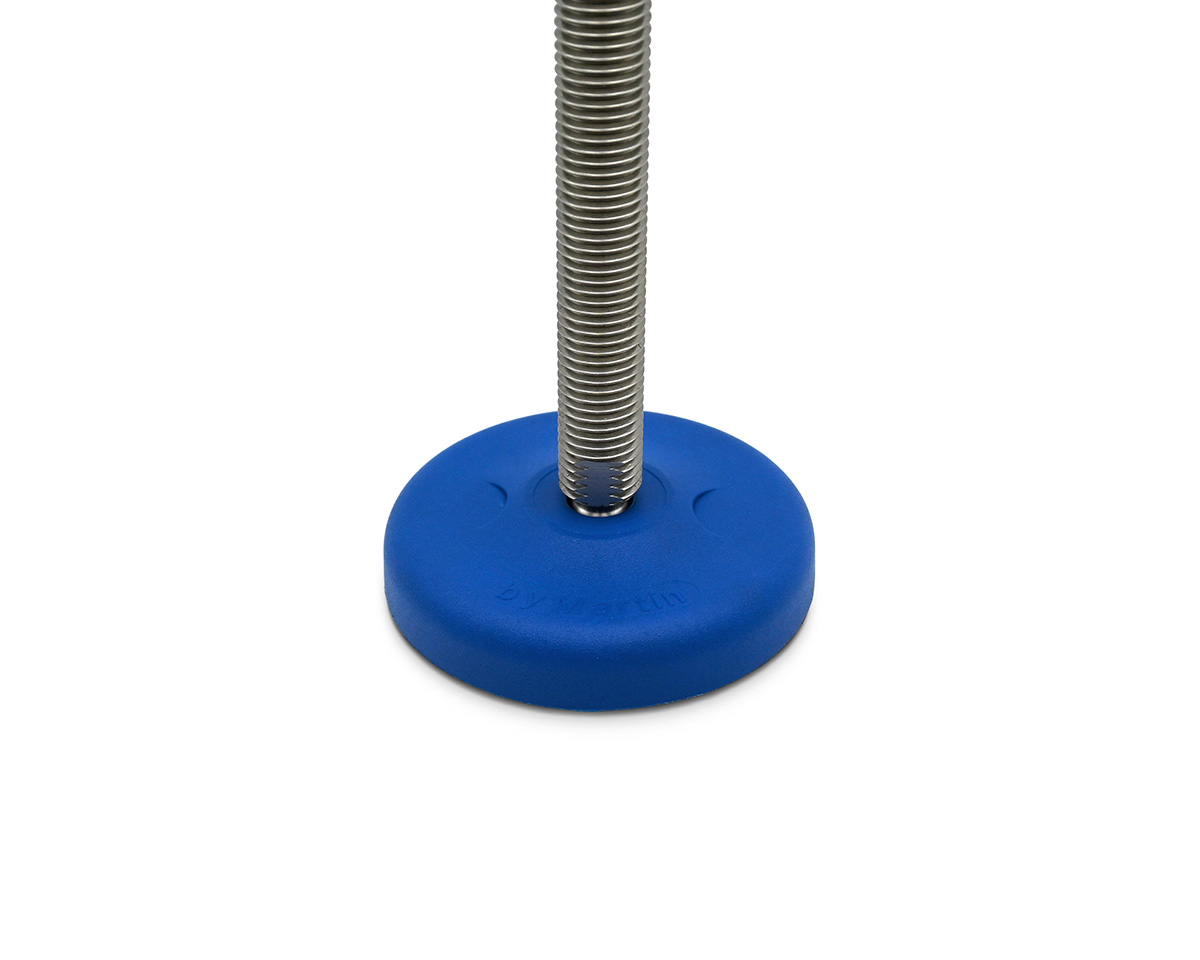

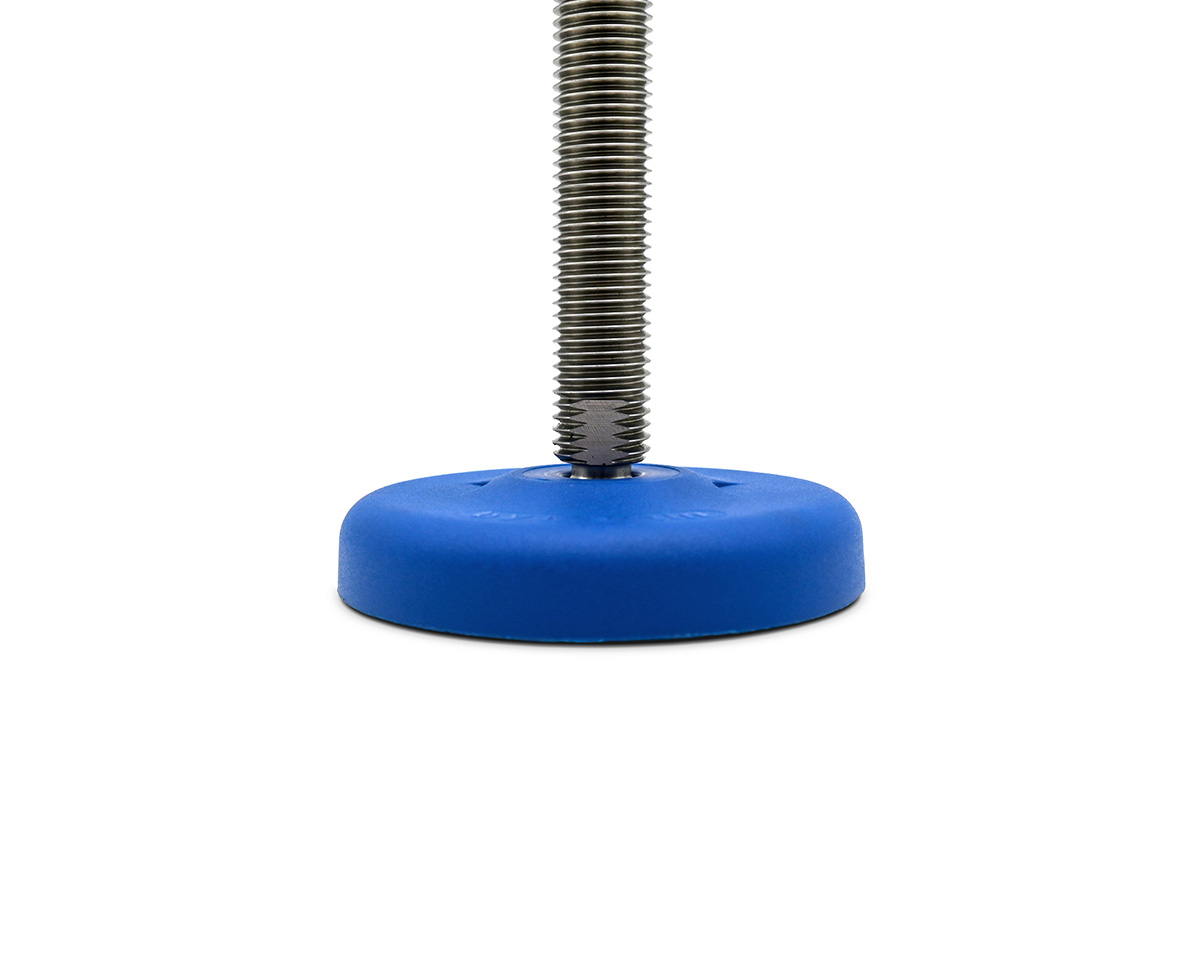

Levelling foot ECO30 PA blue, Ø 123 mm, M24 x 250 mm Stainless steel, Drills
Discover the ECO30 Levelling Foot, featuring a durable blue polyamide base and stainless steel spindle. With a static load capacity of 25,000 N and a 30° articulated screw, it ensures precise stability and versatility for your engineering applications.
| Quantity | Price |
|---|---|
| From 1 |
€18.05*
|
| From 5 |
€16.13*
|
| From 15 |
€14.40*
|
| From 50 |
€14.11*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic blue |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 250 |
| Balancing angle: | 30° |
| Hygiene: | No |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
