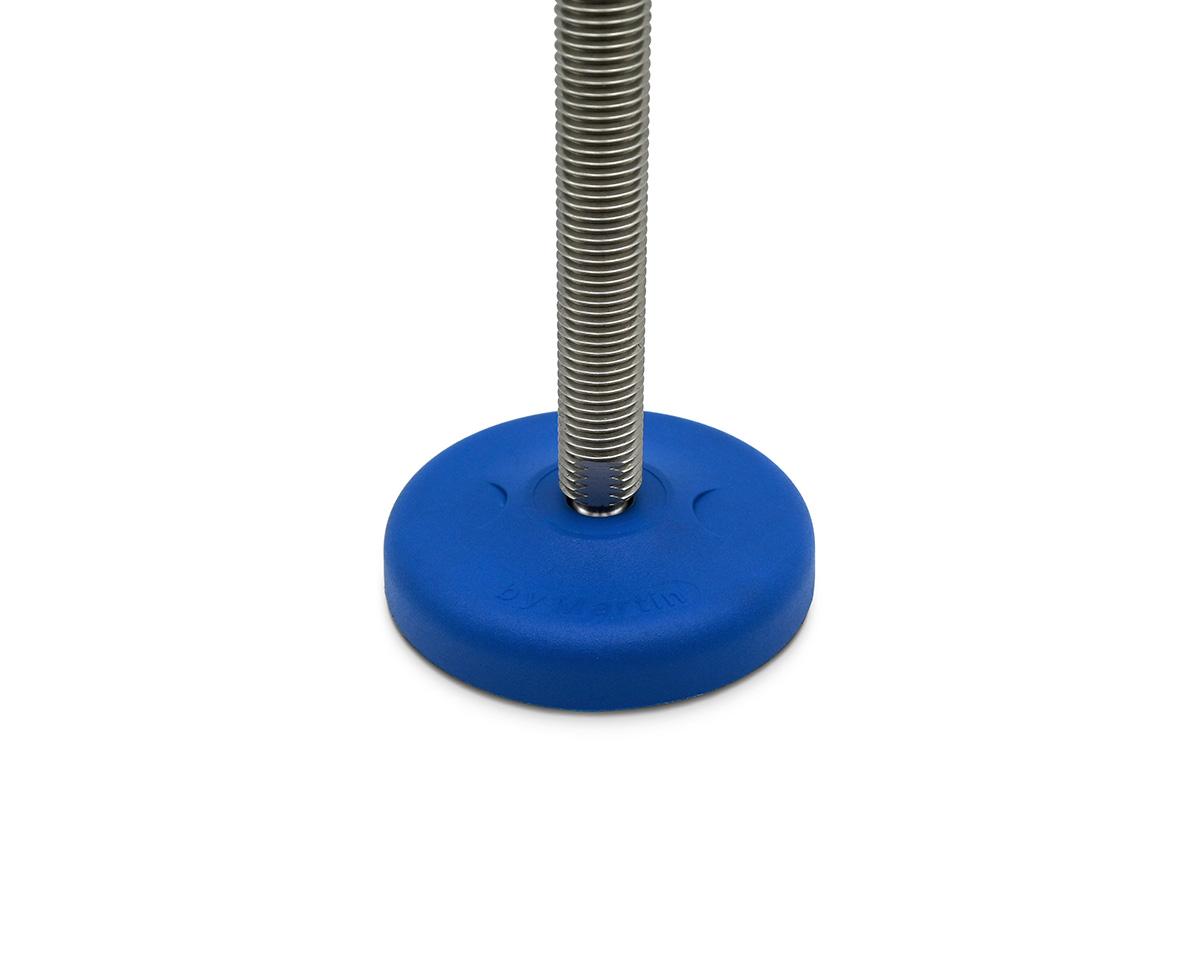

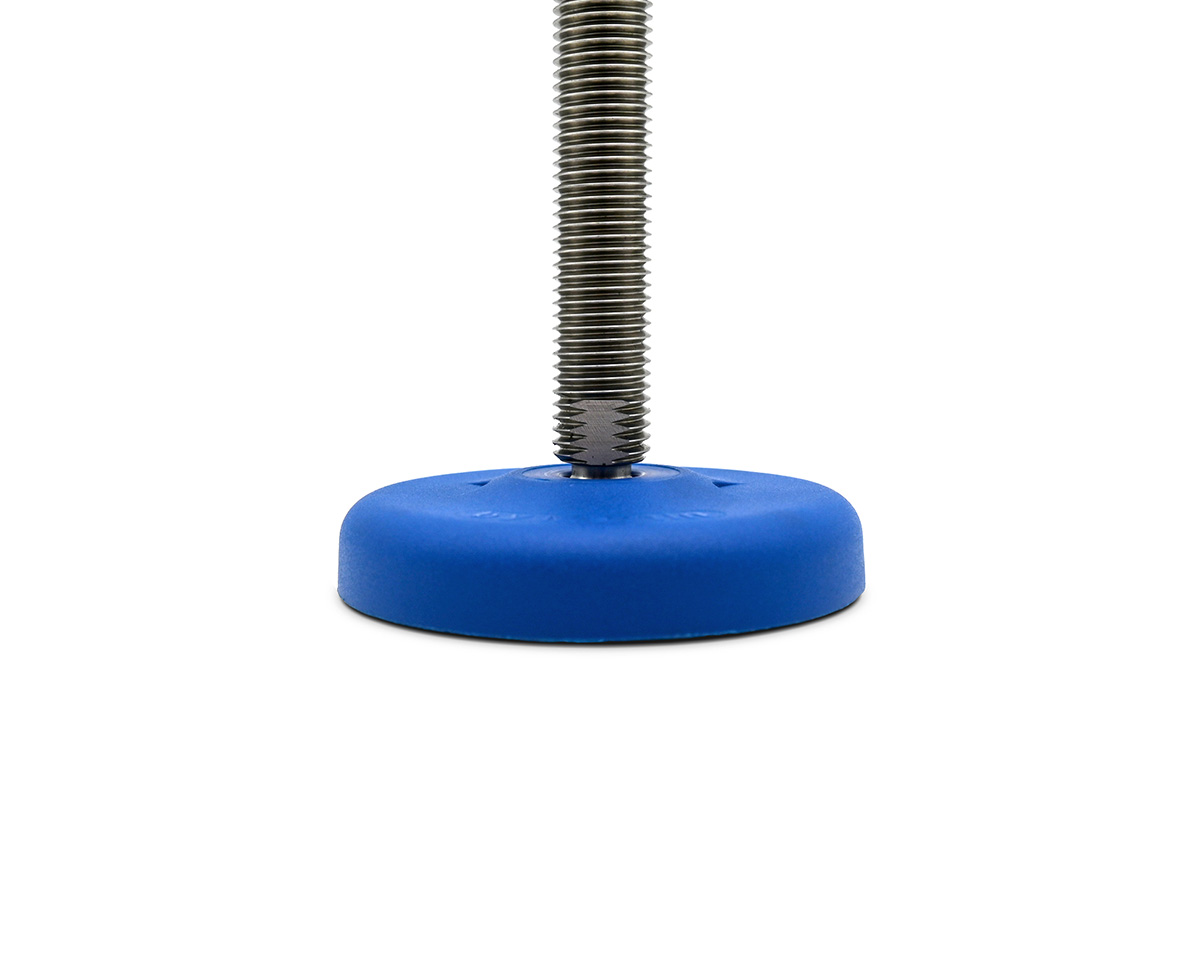

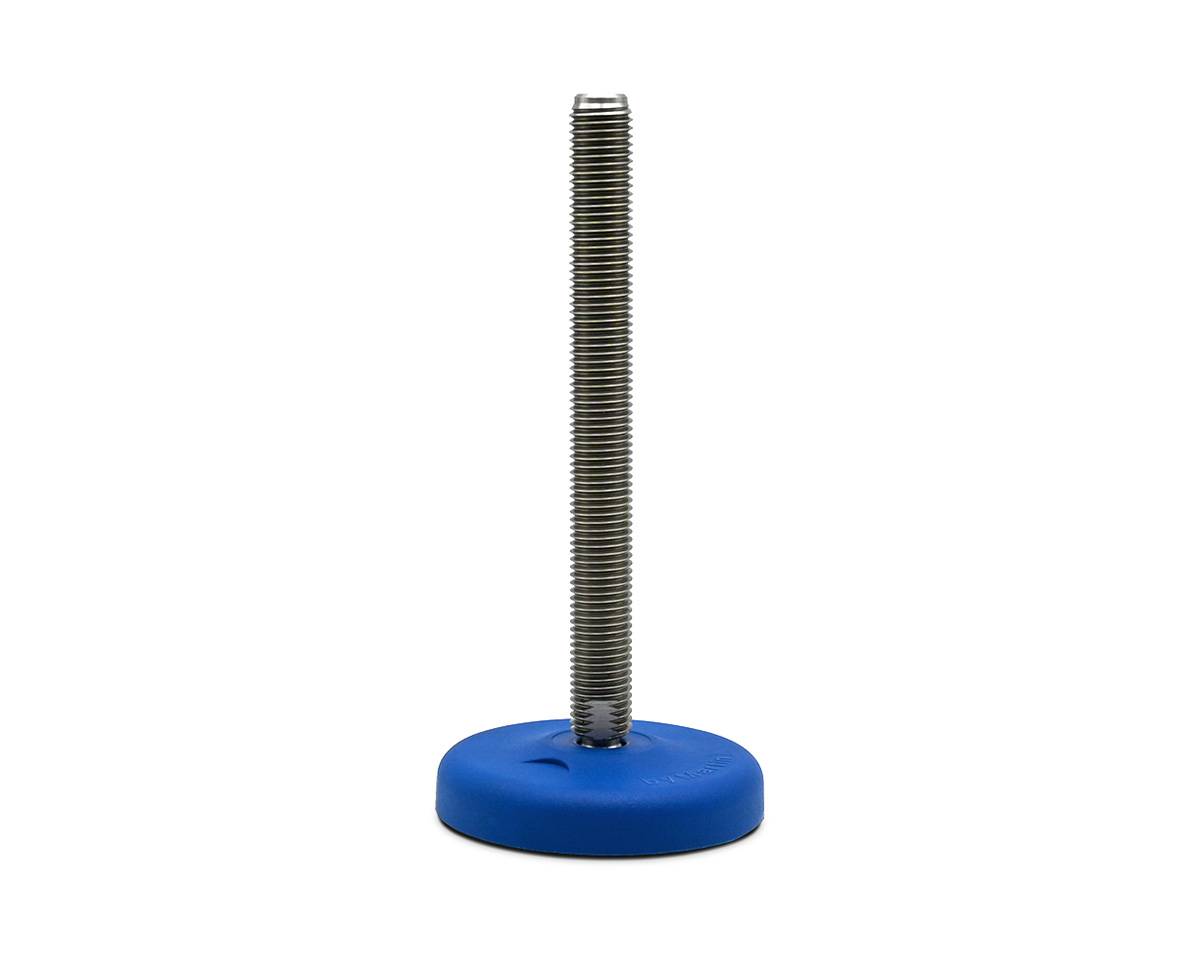

Levelling foot ECO30 PA blue, Ø 83 mm, M12 x 100 mm Stainless steel, Drills
The ECO30 levelling foot features a durable blue polyamide base and stainless steel spindle for robust stability. With a static load capacity of 13,000 N, it ensures precision in various applications.
| Quantity | Price |
|---|---|
| From 1 |
€4.91*
|
| From 5 |
€4.38*
|
| From 15 |
€3.92*
|
| From 50 |
€3.84*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic blue |
| Anti-slip: | No |
| Ø range base plate (mm): | 71-90 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 100 |
| Balancing angle: | 30° |
| Hygiene: | No |
Technical drawing
