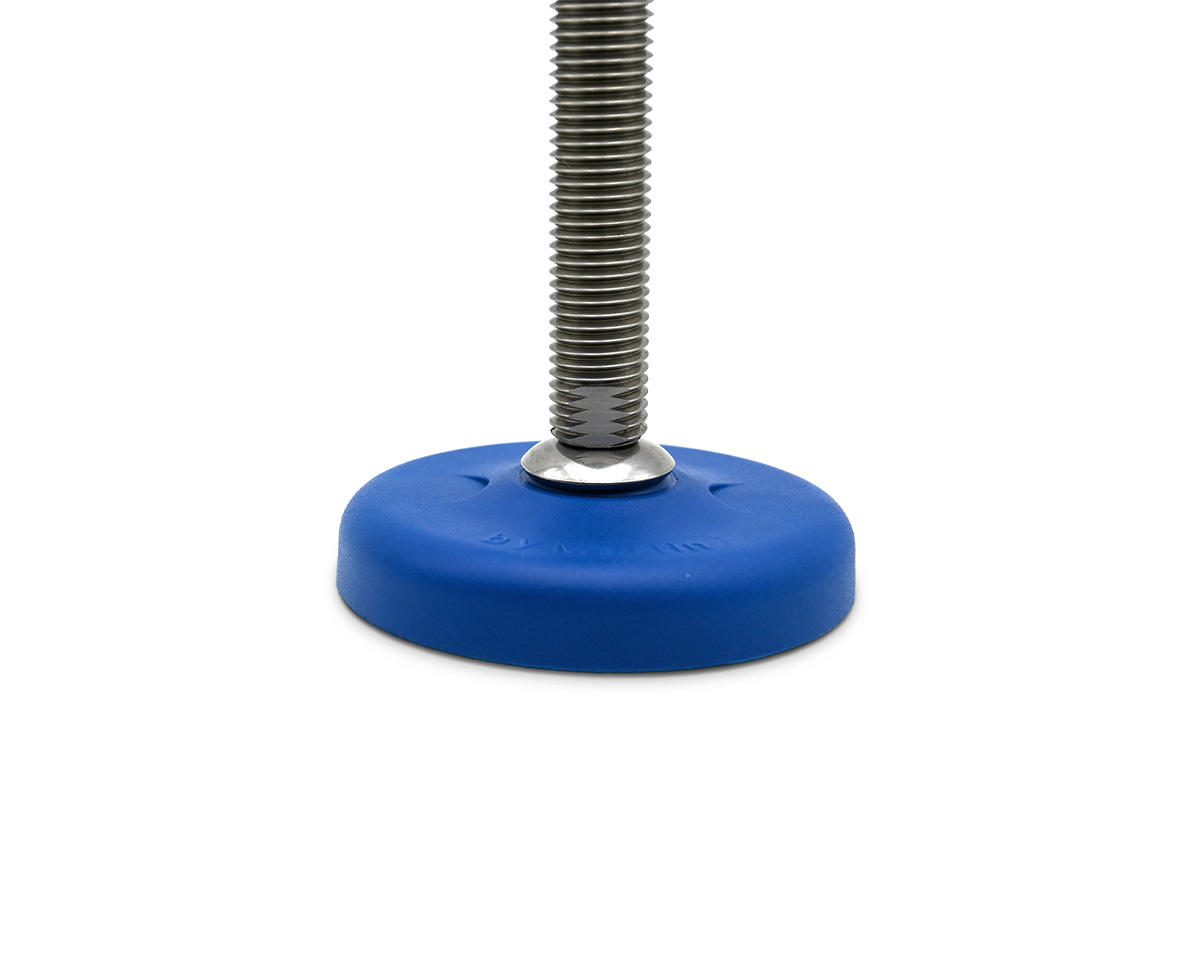

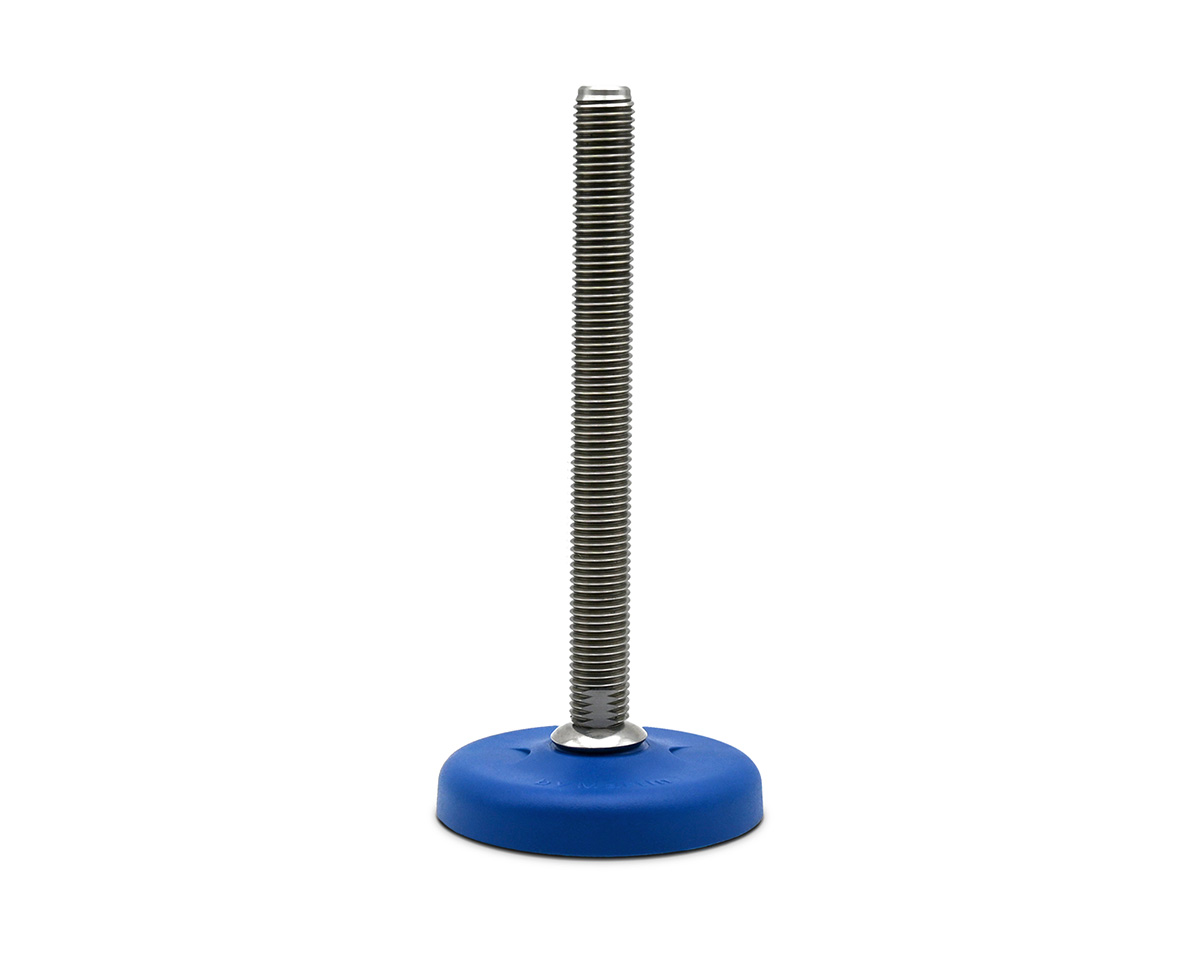

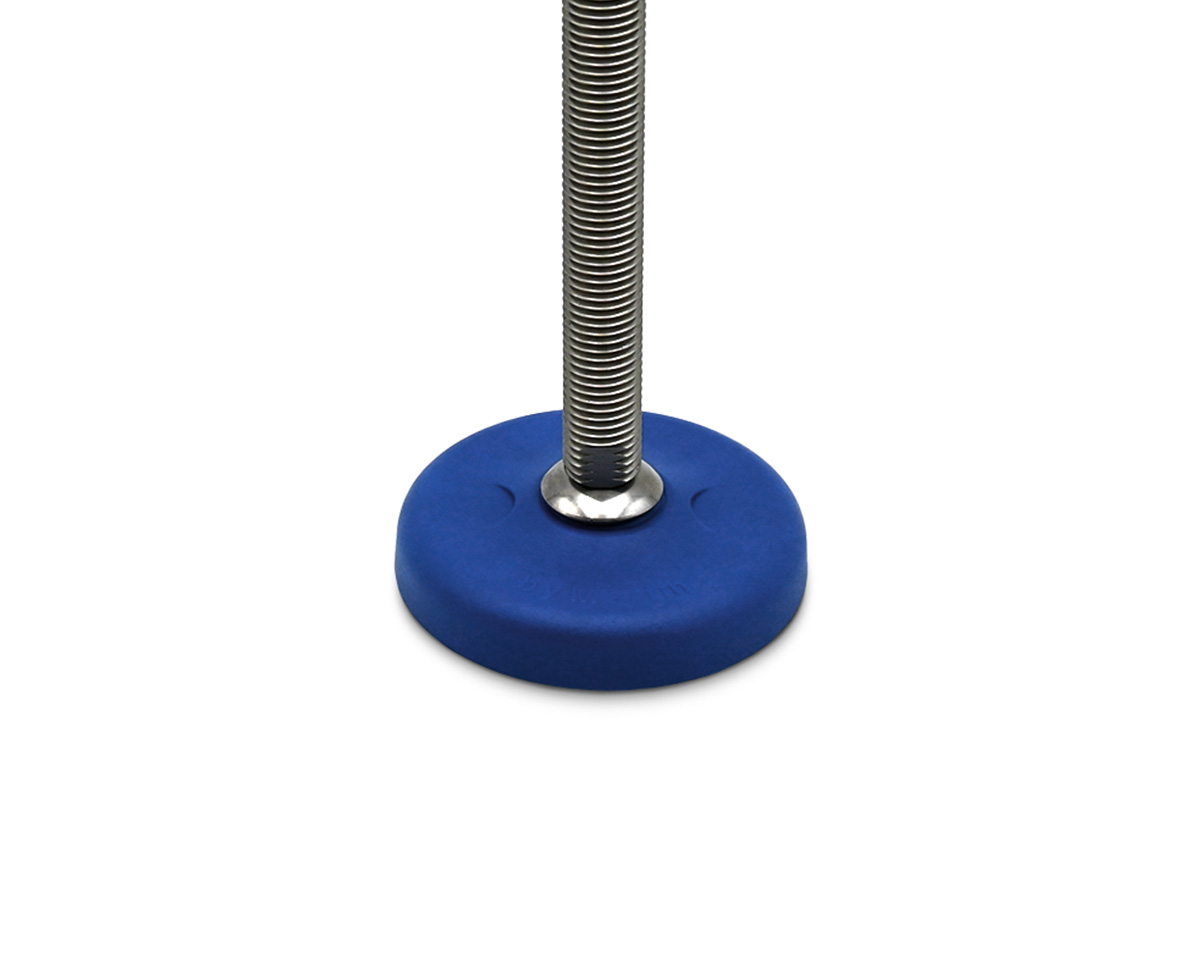

Levelling foot ECO16 PA blue, Ø 83 mm, M12 x 50 mm Stainless steel, Drills
Discover the ECO16 Levelling Foot, featuring a sturdy polyamide base and stainless steel spindle. With a load capacity of 14,000 N and adjustable angle, it ensures optimal stability for your applications.
| Quantity | Price |
|---|---|
| From 1 |
€5.21*
|
| From 5 |
€4.65*
|
| From 15 |
€4.16*
|
| From 50 |
€4.07*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic blue |
| Anti-slip: | No |
| Ø range base plate (mm): | 71-90 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 50 |
| Balancing angle: | 16° |
| Hygiene: | No |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
