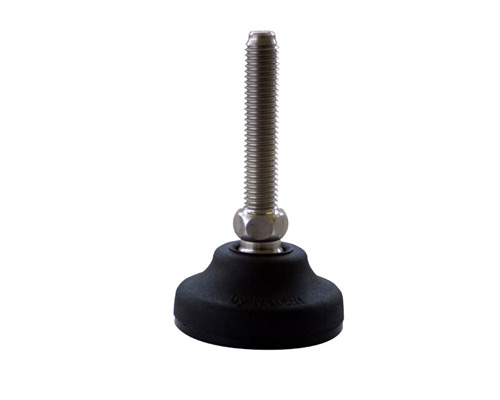

Levelling foot PA, Ø 50 mm, M10 x 25 mm Stainless steel
Optimize your machinery with our durable PA levelling foot, featuring a 50mm diameter and M10 x 25mm stainless steel spindle. Designed for maximum stability and an articulated screw angle of 30°, it supports static loads up to 11,000 N. Ideal for precision engineering applications.
| Quantity | Price |
|---|---|
| From 1 |
€4.25*
|
| From 5 |
€3.80*
|
| From 15 |
€3.39*
|
| From 50 |
€3.32*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | No |
| Ø range base plate (mm): | 41-50 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 10 |
| Spindle length (mm): | 25 |
| Balancing angle: | 30° |
| Hygiene: | No |

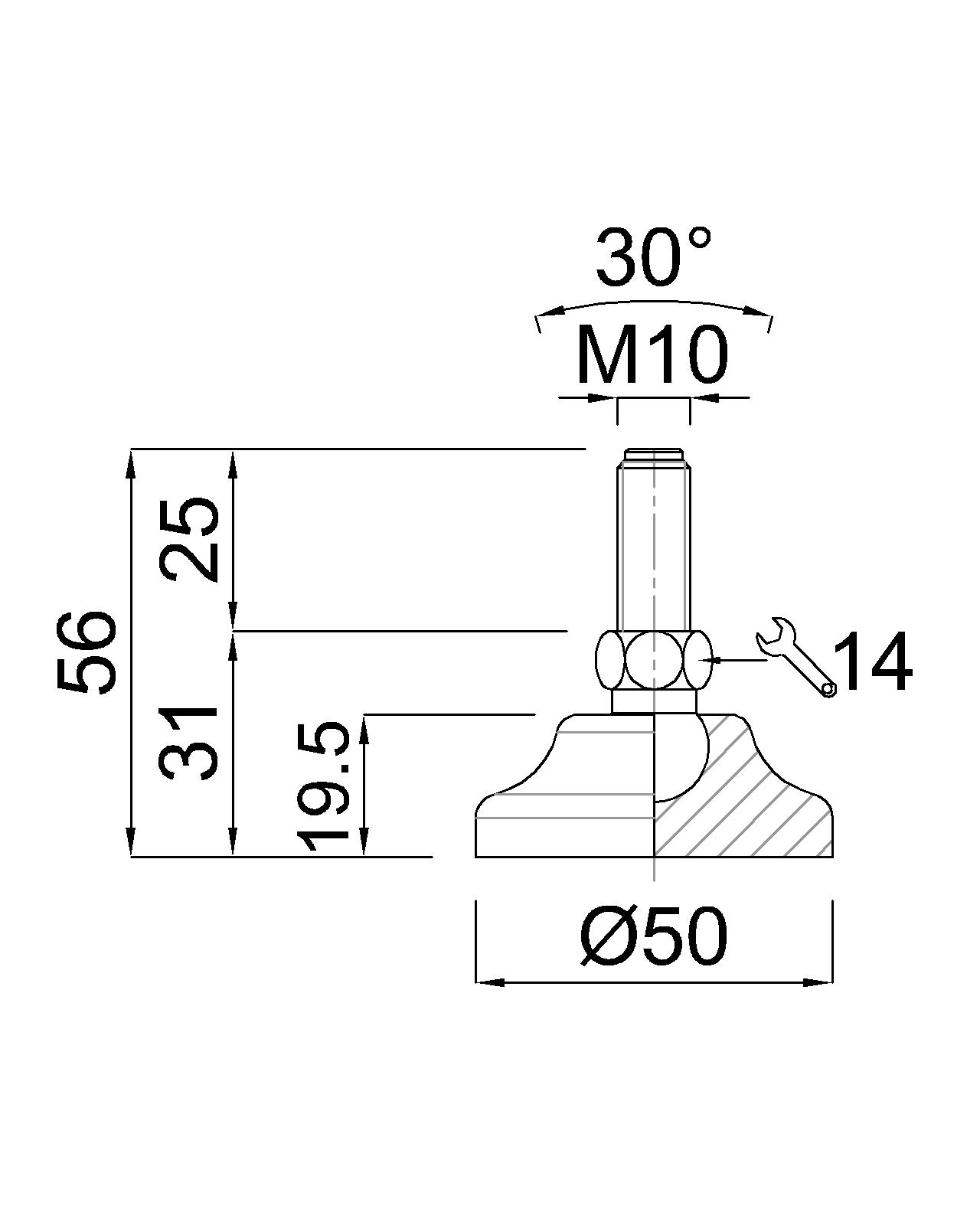

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
