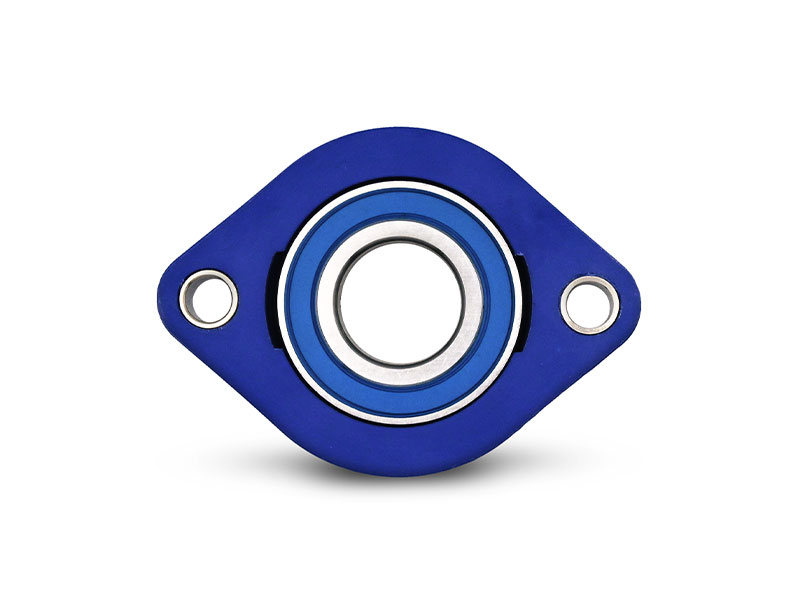

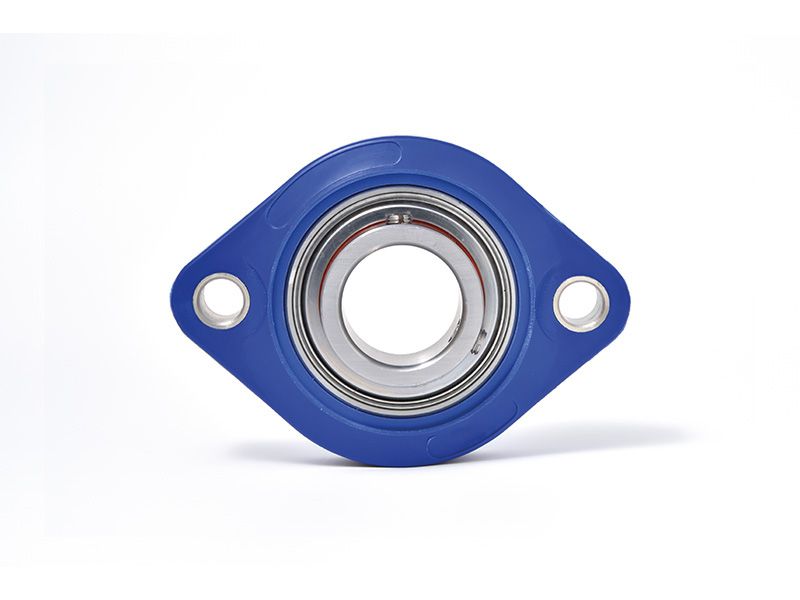

MOVET® Blue Hygienic 2-hole flange bearing CTL 202, housing blue, MB stainless steel, Ø 15 mm

Order number: 4061408109616

Type: 460202CTLMBB

Datenblatt

CAD

Certificates

0 Pieces Delivery time approx. 5 working days

Quantity	Unit price
Up to 9	€34.97 *
From 10	€31.81 *
From 25	€30.69 *
From 40	€28.83 *

Add to parts list

plus tax and shipping costs

MOVET® Blue Hygienic 2-hole flange bearing CTL 202, PBT thermoplastic housing blue, hole distance... more

Close menu

Product information

MOVET® Blue Hygienic 2-hole flange bearing CTL 202, PBT thermoplastic housing blue, hole distance 71,4 mm, w/o grease fitting, MB stainless steel insert, Ø 15 mm, threaded pin with slot

Housing material:	Plastic
Product area / Application:	Hygiene application
Housing type:	2-hole
Cap possible:	Yes
Material bearing insert:	Stainless steel
Shaft diameter:	15
Colour:	blue
